Name:                          20 nozzles Inverter Fog Machine(High Voltage)
Item No.:                      TT20110(220)
Nozzle:                         20 pcs ∮0.2mm nozzles
Fog amount:                 500 cc/min
Fog continuous use time:12 hours
Fog particles:                92% diameter less than 25μm
Motor:                         TT80110(220)，DC Brushless

Motor Temperature
Inner:                         55℃
Outside:                      45℃
Voltage:                      110(220) Voltage
Electricity:                   35-42 Walt
Inner Box:                   350(L)*350(W)*150(H)mm/0.65’/2.8KGS/set
Carton size:                  360(L)*650(W)*370(H)mm/3.1’/14.0KGS/4sets
Weight:                       2.8 KGS/set
Noise level:                  62 db ( Measuring distance 1.5m)
Use of premises

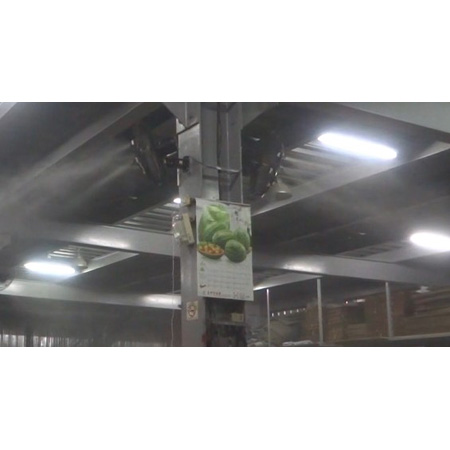

1. Using along with the 24”industrial fans, very suitable for large-scale use of outdoor space, such
    as amusement parks, outdoor dining, BBQ, etc. Cooling effect is excellent good.
2. Suitable for installation in a gazebo or beach umbrella , can increase comfort environment, and
    its good looking appearance.

    Chimney effect often occurs in the long tunnel (tunnel in Taiwan, such as snow-capped mountains,
and Baguashan Tunnel), when the traffic is too heavy, hot exhaust gas emissions of the motor vehicles
in the tunnel, is much larger than  the ventilation of the tunnel's fan, formed dry and hot air in the
tunnel. Hot air can not be discharged, a large number of automobile exhaust, continue emissions in
the tunnel, the air CO2 continues to increase, the amount of water vapor, quickly reduced the formation
of low pressure, 2 ends of the tunnel mouth, a relatively high pressure, heat all concentrated in the
tunnel inside , regardless of how much you use the exhaust fan ventilation or exhaust opening number
at the top of the tunnel mouth, the effects were very limited, the formation of the chimney effect.
This phenomenon occurs more often in the hot summer weather, and the dry season. CO2 in the
tunnel under dry and hot environment, will be converted to CO, CO content is too high, it will
cause the driver drowsiness, lack of concentration in the case, resulting in increased incidence of
car accident. This phenomenon should quickly find the fastest most efficient way to solve.
To improve the situation, the humidifier is the best solution. Tunnel heat and CO2, can be used to
improve moisture. As long as we in the tunnel large increase moisture, humidity and CO2 will be
combined into carbonic acid, moisture due to evaporation, absorb a lot of heat of vaporization,
quickly transformed into gaseous vapor liquid, forming a positive pressure inside the tunnel effect,
high pressure to the low-pressure flow, high temperature and low temperature to move, in the atrium
to form internal and external pressure and temperature, and thus the formation of positive pressure
convection heat quickly and carbonated out outside the tunnel, at the same time, reduce the
temperature inside the tunnel.
Growth strip shape workplace layout design pipeline, often distributed in a straight line connection.
A set of pump transmission distance should not exceed 20 meters long, multiple linear transfer
pumps up to 10 groups of pump series, most long-distance should not exceed 120 meters long.
