NMN Insulation Paper

Item No.:

NMN paper

Supplier Details

Country: Taiwan

City: Taichung City 428017

Address: No. 12-1, Qiancun E. Rd., Daya Dist.

TEL: +886-4-25685848

Fax: +886-4-25685857

Online Showroom: 103 Products

Features and application

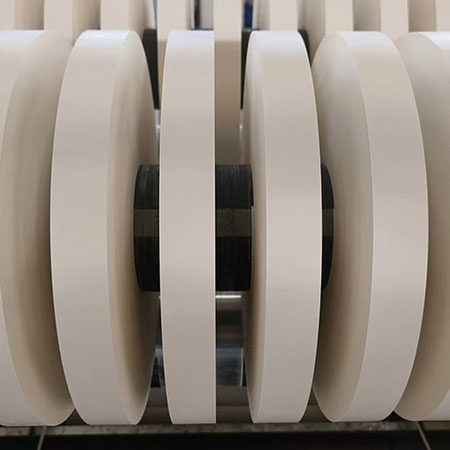

NMN insulation paper is a three-layer flexible laminate which has two layers of aramid paper outside and one layer of polyester film in the center bonded together with high temperature glue.
Thermal class H(180℃) with excellent electrical insulation properties, excellent processing performance and high mechanical strength.
Mainly used in motor slot insulation, turn-to-turn insulation, dry type transformer coil insulation, insulation pad for electrical parts and other fields.
Standard thickness:0.15mm, 0.18mm, 0.23mm, 0.28mm, 0.30mm, 0.35mm, 0.38mm, 0.46mm. Other thickness can be customized according to customer’s requirement.
Stored in a clean, dry, ventilated place, keep away from fire and heating, avoid direct sunlight.
Sell in rolls. Standard width or slitting into required width(s).

Standard width : 910mm
Packaging method : Carton
Free sample : A4
