Appliance Platform
| Item No.: | NA345 |
Supplier Details
Country: Taiwan
City: New Taipei City 231
Address: 8F, No. 4, Lane 235, Baoqiao Road, Xindian District
TEL: +886-2-29174550
Fax: +886-2-29173200
Online Showroom:
32 Products

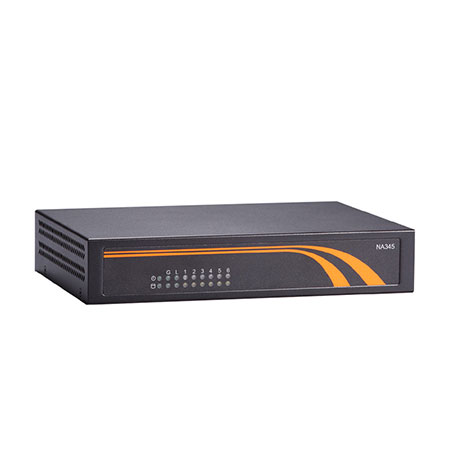

Desktop Network Appliance Platform with Intel® Atom™ x5-E3930 Processor/Celeron® Processor N3350 and 4 LANs
• Intel® Atom™ x5-E3930 Processor/Celeron® Processor N3350 (Apollo Lake)
• One DDR3L-1866 SO-DIMM, up to 8GB memory
• Four 10/100/1000 Mbps Ethernet ports (Intel® i211)
• Two pairs of LAN Bypass functions for fail-over option
• Wi-Fi/3G/LTE through PCI Express Mini Card for optional
• Suitable for VPN, network bandwidth controller and firewall applications
• Supports Win 10 and Linux operating systems
• Slim and compact design in the size of 44 mm (1.73") (H) x 231.9 mm (9.00") (W) x 152mm (5.98") (D)
• Welcome customization service
The NA345 features the latest Intel® Atom™ x5-E3930 processor up to 1.8 GHz (codename: Apollo Lake) which is based on Intel next generation entry-level IoTG platform with 14 nm silicon process technology. Four gigabit Ethernet ports with Intel® i211 controller are integrated into this unit with two-pair supporting LAN bypass. The desktop network appliance supports one DDR3L-1866 SO-DIMM slot with maximum of up to 8GB memory. For storage, it also provides one mSATA and 2.5” SATA hard disk drive. This slim type Intel® Apollo Lake network appliance is an ideal solution for VPN, content filtering, UTM, network security gateway, and firewall.
• Intel® Atom™ x5-E3930 Processor/Celeron® Processor N3350 (Apollo Lake)
• One DDR3L-1866 SO-DIMM, up to 8GB memory
• Four 10/100/1000 Mbps Ethernet ports (Intel® i211)
• Two pairs of LAN Bypass functions for fail-over option
• Wi-Fi/3G/LTE through PCI Express Mini Card for optional
• Suitable for VPN, network bandwidth controller and firewall applications
• Supports Win 10 and Linux operating systems
• Slim and compact design in the size of 44 mm (1.73") (H) x 231.9 mm (9.00") (W) x 152mm (5.98") (D)
• Welcome customization service
The NA345 features the latest Intel® Atom™ x5-E3930 processor up to 1.8 GHz (codename: Apollo Lake) which is based on Intel next generation entry-level IoTG platform with 14 nm silicon process technology. Four gigabit Ethernet ports with Intel® i211 controller are integrated into this unit with two-pair supporting LAN bypass. The desktop network appliance supports one DDR3L-1866 SO-DIMM slot with maximum of up to 8GB memory. For storage, it also provides one mSATA and 2.5” SATA hard disk drive. This slim type Intel® Apollo Lake network appliance is an ideal solution for VPN, content filtering, UTM, network security gateway, and firewall.
