Network IP Cameras

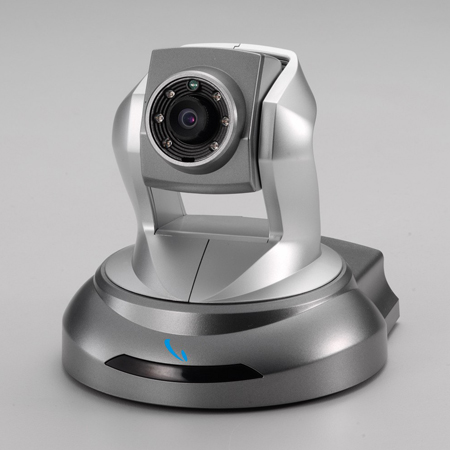

| Item No.: | ANC-818VER (wired) |
- Support NAT Transversal -- The video can be viewed simply by connecting to special designed Internet IP finder without need to do configuration on the router and set the IP address
- Easy Installation -- Connect to the camera only Three Steps
1. Plug the power and Ethernet cable to the camera
2. Run IE and login Internet IP finder (Server)
3. Type the camera's ID and then got the connection from the Server - Support Snapshot at IE browser directly
- Built - in microphone for audio monitoring
- Built - in Motion Detection & Email Notification
- 6 IR Leds with auto light sensor for day and night monitoring
- Auto Pan/Patrol allowed
- Adjustable manual focus, auto white balance, auto exposure control
- Free bundled 16CH recording software
- Pan: Range 355 degree, Tilt: Range 135 degree
- Dimension: 105 * 105 * 100 (mm)
- Package: Camera, Power Adapter, Camera stand, Installation Software & Manual on CD, Quick Installation Guide
- Viewing System Requirement:
Operating system - Microsoft Windows 2000 / XP / Vista /7
Browser - Internet Explorer 5.x or above
Technical Specifications:
- System RAM: 16MB SDRAM ROM: 4MB Flash ROM | - Camera specification 1/4 inch color CMOS sensor, Resolution: 640x480 0.2Lux/F2.0 AGC, AWB, AEC |
- Protocol TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, Telnet, NTP, PPPoE, DNS, DHCP | - Lens Fixed focal with fine tuning, 4.0mm, F2.0 View angle 62 degree |
- WLAN 802.11b/g wireless LAN - Security WEP/WPA-PSK | - Video Resolution Up to 30 frames at 160x120 Up to 30 frames at 320x240 Up to 15 frames at 640x480 M-JPEG for streaming video, JPEG for snapshot |
- Audio Omni-directional Microphone Frequency: 50 – 20000Hz S/N ratio: more than 55dB | - Pan/Tilt angle Support multi - direction movement Pan : Range 355 degree, Tilt : Range 135 degree |
Physical 10 baseT or 100 baseT Fast Ethernet auto negotiation Support AUTO-MDIX | - Power Input: 100-240VAC, 50/60Hz, 0.7A Output: 5VDC,2A Consumption: Max 7 W |
- EMI & Safety CE, FCC | - Dimension 105 x 105 x 110 (mm) |
- Operating Environment Temperature : 0 - 40℃ Humidity : 85% RH | - Weight NET. 355g (Wired Model) |
