Network Security Hardware
| Item No.: | NA361R |
Supplier Details
Country: Taiwan
City: New Taipei City 231
Address: 8F, No. 4, Lane 235, Baoqiao Road, Xindian District
TEL: +886-2-29174550
Fax: +886-2-29173200
Online Showroom:
32 Products

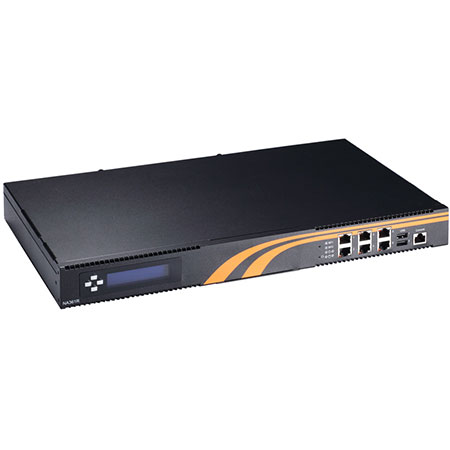

1U Rack-mount Network Appliance Platform with Intel® Atom™ Processor C2558 up to 2.40 GHz and 6 LANs
• Intel® Atom™ processor C2558 (Rangeley)
• Four DDR3-1600 U-DIMM, up to 32GB memory
• Six 10/100/1000 Mbps Ethernet ports (Intel® i354 & Intel® i210)
• Supports Intel® QuickAssist Technology
• Supports Intel® Data Plane Development Kit (Intel® DPDK)
• Suitable for VPN, network bandwidth controller, firewall and UTM applications
• Slim and compact design, the dimensions: 44 mm (1.73") (H) x 430 mm (16.93") (W) x 250mm (9.84") (D)
• Welcome customization service
The NA361R is 1U rackmount network appliance platform for VPN, Firewall, UTM and other network applications. It supports low power Intel® Rangeley Atom™ Soc up to 2.4 GHz processor. The NA361R empowers its performance on Rangeley with 8 cores and supports Intel® AES New Instructions (AES-NI) and VT-x virtualization while the new Crypto Engine enables Intel® 4 x DDR3 UDIMM socket up to 32GB, un-buffered non ECC/ECC memory (dual channel) and QuckAssist Technology that supports 128, 192 and 256-bit AES, 3DES, DES. To prevent problems from sudden shutdown, the NA361R supports LAN bypass function through software program, and supports two 2.5" SATA HDD or one CompactFlash™ for storing event log data. It also supports one expansion slot for 1G or 10G NIC card for optional.
• Intel® Atom™ processor C2558 (Rangeley)
• Four DDR3-1600 U-DIMM, up to 32GB memory
• Six 10/100/1000 Mbps Ethernet ports (Intel® i354 & Intel® i210)
• Supports Intel® QuickAssist Technology
• Supports Intel® Data Plane Development Kit (Intel® DPDK)
• Suitable for VPN, network bandwidth controller, firewall and UTM applications
• Slim and compact design, the dimensions: 44 mm (1.73") (H) x 430 mm (16.93") (W) x 250mm (9.84") (D)
• Welcome customization service
The NA361R is 1U rackmount network appliance platform for VPN, Firewall, UTM and other network applications. It supports low power Intel® Rangeley Atom™ Soc up to 2.4 GHz processor. The NA361R empowers its performance on Rangeley with 8 cores and supports Intel® AES New Instructions (AES-NI) and VT-x virtualization while the new Crypto Engine enables Intel® 4 x DDR3 UDIMM socket up to 32GB, un-buffered non ECC/ECC memory (dual channel) and QuckAssist Technology that supports 128, 192 and 256-bit AES, 3DES, DES. To prevent problems from sudden shutdown, the NA361R supports LAN bypass function through software program, and supports two 2.5" SATA HDD or one CompactFlash™ for storing event log data. It also supports one expansion slot for 1G or 10G NIC card for optional.
