NDK Fireplace Valve gas ignition Gas Control Syste
Item No.: | BK-368 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1F., NO. 4, LANE 657, CHUNG CHENG RD., SHULIN DIST., NEW TAIPEI CITY 238, TAIWAN (R.O.C.)
TEL: +886-2-26897061
Fax: +886-2-26892262
Online Showroom:
3 Products

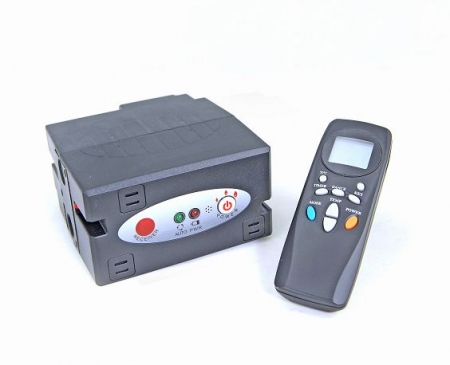

Fireplace Gas Control System with Remote Controller (BK-368)
Hot Point :
1. Remote Controlled
2. For fireplace and BBQ,Stoves
3. Both NG & LPG
4. With Gas valve & Ignition 5. CE & UL & CSA Approved Specification : 1. Gas Type: Both Natural Gas & LPG (Propane) 2. Capacity: Can be adjusted by your market needs NG : Max 45000 BTU / hr LPG : Max 90000 BTU / hr 3. Temperature : ~ 80.C (175.F) 4. Operation Voltage : 110 / 220 VAC ; 3 VDC 5. Output Voltage : 12 kV / min 6. Ignition Circles : 6 Hz at 3VDC 7. Maximum Operation Pressure : 1 / 2 psi (3.5 kpa) 8. Flame Faliure Respone Time : 25 +/- 5s (safty control system)
2. For fireplace and BBQ,Stoves
3. Both NG & LPG
4. With Gas valve & Ignition 5. CE & UL & CSA Approved Specification : 1. Gas Type: Both Natural Gas & LPG (Propane) 2. Capacity: Can be adjusted by your market needs NG : Max 45000 BTU / hr LPG : Max 90000 BTU / hr 3. Temperature : ~ 80.C (175.F) 4. Operation Voltage : 110 / 220 VAC ; 3 VDC 5. Output Voltage : 12 kV / min 6. Ignition Circles : 6 Hz at 3VDC 7. Maximum Operation Pressure : 1 / 2 psi (3.5 kpa) 8. Flame Faliure Respone Time : 25 +/- 5s (safty control system)
