Nano SIM Socket - 115S-ACA0

Nano SIM Socket

Item No.: 115S-ACA0
Supplier Details
ATTEND Technology Inc.
Country: Taiwan
City: New Taipei City 221
Address: 10F-6, No.81, Sec. 1,Xintai 5th Rd., Xizhi-Dist.,
TEL: +886-02-26987028
Fax: +--
Online Showroom: 5 Products

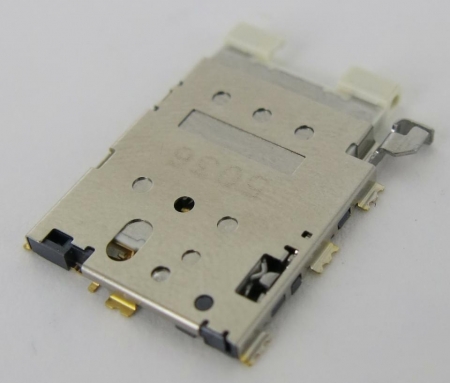

Nano SIM Socket, Top Mount, Eject Type, H1.35 with Tray SPECIFICATION: ELECTRICAL Current Rating: 0.2A max. Voltage Rating: 10VAC/DC Contact Resistance: 50mΩ Insulation Resistance: 1000MΩ Dielectric Withstanding Voltage: 500VAC MECHANICAL Durability: 2,000 Cycle Tray Insertion Force: 20N max. Tray Extraction Force: 3N min. Contact Normal Force: 40gf min. per pin ENVIRONMENTAL Operating temperature range: -30°C~+85°C Storage temperature range: -40°C~+85°C SOLDER ABILITY Recommended IR Reflow(Wave Soldering) Temperature: 260°C
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Nano SIM Socket

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
