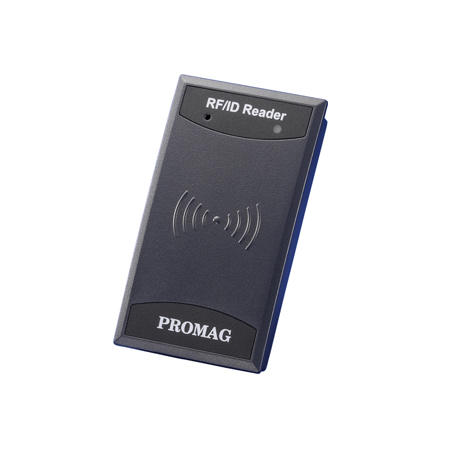

Multi-Technology Reader
Item No.: | FL20 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 8F, No. 31 Lane 169, Kang-Ning Street, Hsi-Chih Dist
TEL: +886-2-26954214
Fax: +886-2-26954213

Online Showroom:
84 Products
Multi-Technology Reader
Introduction:
The FL20 is a high performance multi-technology reader reading 125KHz/Mifare/FeliCa card
serial numbers. It is the best choice for system integrators because of its wide range of
power inputs (between 5V to 18V DC.) The Three-In-One interface, RS-232, MSR ABA TK2 and
Wiegand allowing it to integrate with a variety of applications, especially security
access control.
Features:
☆Three-In- One interface: Weigand, MSR ABA TK 2 and RS232
☆Multi-technology: 125KHz, Mifare and FeliCa format
☆Weather resistant
·Reading distance: up to 50 mm
·Read Mifare cards/FeliCa cards
·Fast data transfer
Applications:
·Access Control Systems
·Security Systems
·ID card for admission control
·Personal Identification
Specifications:
※ Mifare is a registered trademark of Philips Electronics N.V.
※ Specification is subject to change without notice.

Introduction:
The FL20 is a high performance multi-technology reader reading 125KHz/Mifare/FeliCa card
serial numbers. It is the best choice for system integrators because of its wide range of
power inputs (between 5V to 18V DC.) The Three-In-One interface, RS-232, MSR ABA TK2 and
Wiegand allowing it to integrate with a variety of applications, especially security
access control.
Features:
☆Three-In- One interface: Weigand, MSR ABA TK 2 and RS232
☆Multi-technology: 125KHz, Mifare and FeliCa format
☆Weather resistant
·Reading distance: up to 50 mm
·Read Mifare cards/FeliCa cards
·Fast data transfer
Applications:
·Access Control Systems
·Security Systems
·ID card for admission control
·Personal Identification
Specifications:
Power Requirements | 5 ~ 18 Volts regulated DC at 150mA Typical with a 12V supply ※ A linear regulator is recommended |
Interface | Wiegand 26 bits, MSR ABA TK2, RS232 |
Card type | 125KHz EM format Mifare: ISO14443A standard FeliCa: ISO18092 standard |
Maximum reading distance | Up to 50 mm at 5V ~ 18V with Mifare ISO card in ideal conditions |
Frequency | 13.56 MHz standard and 125KHz |
Transponder | Read only (For Unique Serial Number / Unique Identifier) |
Audio / Visual Indication | Internal LED and Buzzer |
Dimensions | 78 (L) x 43 (W) x 15(D) mm |
Operating temperature | -10 ~ +60°C |
Housing material | ABS |
※ Mifare is a registered trademark of Philips Electronics N.V.
※ Specification is subject to change without notice.
