Multiple monitor video card + VideoUFO

Highlight:

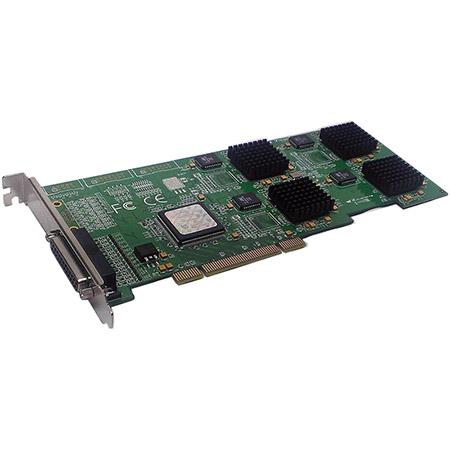

Power22 for the PCI interface, supports up to four VGA/SCART outputs, four Composite Video outputs, four YPbPr outputs and four Composite Video capture in. ASIC built-in with 8MB SDRAM, DVD, MPEG2, MPEG1 video decoder, Triple 8bit RAMDACs, Worldwide CP formats, CP Direct NTSC/PAL/SCART CP Encoder, 64-bit GUI Accelerator and providing Windows Driver and DOS API to assist customer design their system. Single PC can be inserted more than one EC display card to provide more output signal. This card is Fan less, low power consumption and high stability, is ideally suited for industrial environments.

Specification(For one ASIC):

GPU: CyberPro 5202
Bus Type: PCI
Memory Size(MB): 8 / SDRAM
Core Clock(MHz): 200
Memory Clock(MHz): 166
DirectX: no
OpenGL: no
Output Interface: D-Sub 25, D-Sub 15, Box header(2x8)*2
Output Signal: VGA*4, Composite Video *4, SCART*4 (Option), YPbPr*4 (Option)
Input Interface: Box header(2x5)*1
Input Signal: Composite Video*4 (Option)
Accessories:
D-Sub 25 to D-Sub 15 cable *1
D-Sub 25 to Composite Video cable*1
VGA Max Resolution: 1366*768
Supports NTSC Resolution: 640*480@60Hz
Supports PAL Resolution: 800x600/720x540/640x480@50Hz
OS: DOS, WIN 2000, XP, WIN 7
