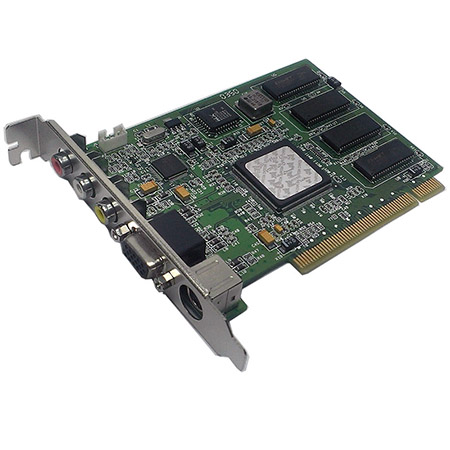

Multi Output Video Card
| Item No.: | SP |
Supplier Details
Country: Taiwan
City: New Taipei City 23144
Address: 7F-7, No.94, Baozhong Road, Xindian District
TEL: +886-2-29160823
Fax: +886-2-29160841
Online Showroom:
63 Products
Multiple monitor video card + VideoUFO
Highlight:
SP for the PCI interface. Supports three kinds of output interfaces (VGA * 1, Composite Video * 1, S-Video * 1), also supports video capture function, the input interface include Composite Video * 2, S-Video * 1. ASIC built-in 4MB of SDRAM, 64-bit GUI Accelerator, 200 MHz RAMDAC, Shadow registers and supports SDRAM from 1MB up to 4MB and providing Windows Driver and DOS API to assist customer design their system. Fully programmable field, line, and subcarrier frequencies to suit worldwide TV standards. Single PC can be inserted more than one EC display card to provide more output signal. This card is Fan less, low power consumption and high stability, is ideally suited for industrial environments.
Specification:
Highlight:
SP for the PCI interface. Supports three kinds of output interfaces (VGA * 1, Composite Video * 1, S-Video * 1), also supports video capture function, the input interface include Composite Video * 2, S-Video * 1. ASIC built-in 4MB of SDRAM, 64-bit GUI Accelerator, 200 MHz RAMDAC, Shadow registers and supports SDRAM from 1MB up to 4MB and providing Windows Driver and DOS API to assist customer design their system. Fully programmable field, line, and subcarrier frequencies to suit worldwide TV standards. Single PC can be inserted more than one EC display card to provide more output signal. This card is Fan less, low power consumption and high stability, is ideally suited for industrial environments.
Specification:
- GPU: CyberPro 2010
- Bus Type: PCI
- Memory Size(MB): 2 / EDO RAM
- Core Clock(MHz): 60
- Memory Clock(MHz): 100
- DirectX: no
- OpenGL: no
- Output Interface: D-Sub 15*1, S-video*1, Composite Video *1
- Input Interface: Composite Video *2, wafer header(1x4)*1
- Output Signal: VGA*1, Composite Video*1, S-video*1
- Input Signal: Composite Video*2, S-video*1
- VGA Max Resolution: 1600*1200(UXGA)
- Supports NTSC Resolution: 640*480
- Supports PAL Resolution: 800x600/720x540/640x480@50Hz
- OS: DOS, WIN 2000, XP
