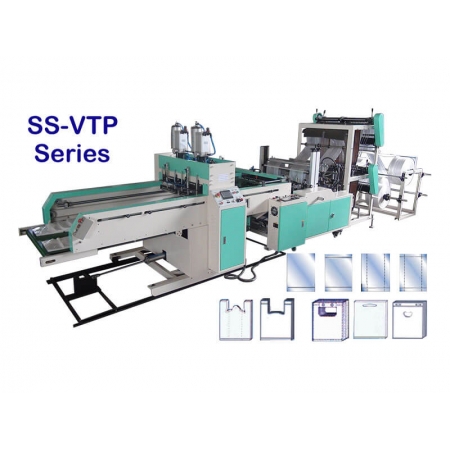

Multi line Cold Cut T Shirt Bag Machine
| Item No.: | SS-VTP Series |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
Fully Automatic Servo-driven Double Layer Multi-line Cold-cut T-Shirt Bag Making Machine
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
MACHINE FEATURE:
- High capacity:640pcm. by 4lines; 960pcm. by 6lines; 1280pcm. by 8 lines.
- This machine is specially designed to make non-printing T-shirt bags or continuous printing T-shirt bags.
- Sealing bar can be easily changed for T-shirt bags and plain bags.
- Fast and accurate servo-driven feed system ensures accurate bag cutting and sealing, deviation within 0.5mm.
- Sensor controls the input of film rolls, assuring perfect sealing line without tension.
- Fully system by HMI and PLC control, show information when machine alarm stop.
- Unique design with easy change between T-shirt bags and calendar bags.(Optional)
- Print sensors guarantee the precision for printed bags.(Optional)
SPECIFICATIONS: P.S. Customization could be available.
| Model | T-shirt Bag (with punch) Lline × W x L x T x Layer |
Flag Bag (without punch) Line x T x W x L x Layer |
Max-Cutting of Punch |
Capacity T-shirt bag / Flat bag (pcm) |
Main Motor / Servo Motor |
Heater / Power Required |
Air supply Required |
Machine Size/ Working place |
Packing Size | N.W./ G.W. |
|
| 2 Line Punch |
SS4- 700 VTP |
2xW120~305xL270~650 xT0.008~0.035x2Lyr |
2xW75~305xL120~1200 1xW75~670xL120~1200 xT0.01~0.10x2Lyr |
Thickness of pile Max. 20 mm |
T-max.120x4 F-max.160x4 |
1Hp 4P / 3.0KWx1 |
1.8KWx2 / 7.8KW |
0.6Mpa 300ml/min |
6.7x1.55x2.0 / 7.5x2.0x2.0 |
2.5x1.75x2.3 / 3.0x1.65x2.3 |
2800 / 3200 |
| SS4- 800 VTP |
2xW120~355xL270~650 xT0.008~0.035x2Lyr |
2xW75~355xL120~1200 1xW75~770xL120~1200 xT0.01~0.10x2Lyr |
Thickness of pile Max. 20 mm |
T-max.120x4 F-max.160x4 |
1Hp 4P / 3.0KWx1 |
2.2KWx2 / 8.5KW |
0.6Mpa 300ml/min |
6.7x1.65x2.0 / 7.5x2.1x2.0 |
2.5x1.85x2.3 / 3.0x1.85x2.3 |
3000 / 3400 |
|
| SS4- 1000 VTP |
2xW120~455xL270~650 xT0.008~0.035x2Lyr |
2xW75~455xL120~1200 1xW75~950xL120~1200 xT0.01~0.10x2Lyr |
Thickness of pile Max. 20 mm |
T-max.120x4 F-max.150x4 |
1Hp 4P / 3.0KWx1 |
2.4KWx2 / 9.0KW |
0.6Mpa 350ml/min |
6.9x1.85x2.0 / 7.7x2.2x2.0 |
2.5x1.85x2.3 / 3.0x1.85x2.3 |
3300 / 3800 |
|
| 3 Line Punch |
SS6- 800 VTP |
3xW120~220xL270~650 xT0.008~0.035x2Lyr |
3xW75~220xL120~1200 2xW75~355xL120~1200 1xW75~770xL120~1200 xT0.01~0.10x2Lyr |
Thickness of pile Max. 20 mm |
T-max.120x6 F-max.160x6 |
1Hp 4P / 3.0KWx1 |
2.2KWx2 / 9.4KW |
0.6Mpa 350ml/min |
6.9x1.65x2.0 / 7.7x2.1x2.0 |
2.6x2.05x2.3 / 3.1x2.05x2.3 |
3200 / 3600 |
| SS6- 1000 VTP |
3xW120~285xL270~650 xT0.008~0.035x2Lyr |
3xW75~300xL120~1200 2xW75~455xL120~1200 1xW75~950xL120~1200 xT0.01~0.10x2Lyr |
Thickness of pile Max. 20 mm |
T-max.120x6 F-max.150x6 |
1Hp 4P / 3.0KWx1 |
2.4KWx2 / 9.7KW |
0.6Mpa 350ml/min |
6.9x1.85x2.0 / 7.7x2.2x2.0 |
2.7x1.85x2.3 / 3.0x1.85x2.3 |
3600 / 4100 |
|
| SS6- 1200 VTP |
3xW120~350xL270~650 xT0.008~0.035x2Lyr |
3xW75~370xL120~1200 2xW75~520xL120~1200 1xW75~1100xL120~1200 xT0.01~0.10x2Lyr |
Thickness of pile Max. 20 mm |
T-max.115x6 F-max.140x6 |
2Hp 4P / 4.5KWx1 |
2.6KWx2 / 11.5KW |
0.6Mpa 400ml/min |
7.1x2.05x2.0 / 7.9x2.5x2.0 |
2.7x2.25x2.3 / 3.1x2.25x2.3 |
3900 / 4500 |
|
| 2_4 Line Punch |
SS8- 800 VTP2 |
4xW100~160xL270~650 2xW100~355xL270~650 xT0.008~0.035x2Lyr |
4xW75~170xL120~500 2xW75~355xL120~700 xT0.01~0.10x2Lyr |
Thickness of pile Max. 20 mm |
T-max.120x8 F-max.160x8 |
1Hp 4P / 3.0KWx1 |
2.2KWx2 / 10.4KW |
0.6Mpa 350ml/min |
7.4x1.65x2.0 / 8.2x2.1x2.0 |
2.7x1.85x2.3 / 3.0x1.85x2.3 |
3300 / 3700 |
| SS8- 1000 VTP2 |
4xW100~200xL270~650 2xW100~455xL270~650 xT0.008~0.035x2Lyr |
4xW75~220xL120~600 2xW75~455xL120~650 xT0.01~0.10x2Lyr |
Thickness of pile Max. 20 mm |
T-max.120x8 F-max.150x8 |
1Hp 4P / 3.0KWx1 |
2.4KWx2 / 10.7KW |
0.6Mpa 350ml/min |
7.4x1.85x2.0 / 8.2x2.2x2.0 |
2.7x2.05x2.3 / 3.0x2.05x2.3 |
3700 / 4200 |
|
| SS8- 1200 VTP2 |
4xW100~250xL270~650 2xW100~530xL270~650 xT0.008~0.035x2Lyr |
4xW75~270xL120~600 2xW75~545xL120~750 xT0.01~0.10x2Lyr |
Thickness of pile Max. 20 mm |
T-max.115x8 F-max.140x8 |
2Hp 4P / 4.5KWx1 |
2.6KWx2 / 12.5KW |
0.6Mpa 400ml/min |
7.6x2.05x2.0 / 8.4x2.5x2.0 |
2.7x2.25x2.3 / 3.1x2.25x2.3 |
4000 / 4600 |
- Specifications are subject to change without notice.
