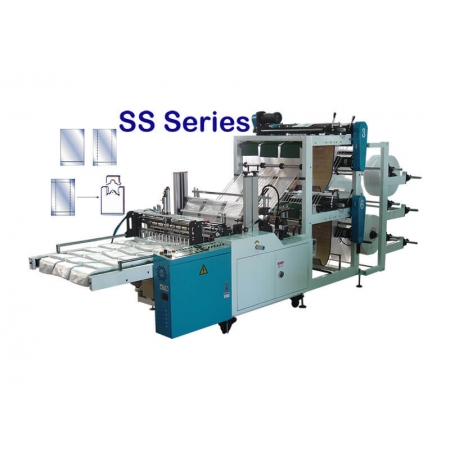

Multi Lane Bottom Sealing Bag Machine - SS Series

Multi Lane Bottom Sealing Bag Machine

Item No.: SS Series
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Multi-lane Bag Making Machine

MACHINE FEATURE:
  • With easy alternation of sealing knife for shopping bags and plain bags.
  • Adoption of electronic clutch and brake ensure accurate bag cutting and sealing within 1mm.
  • Sensor controls input of film rolls, assuring perfect sealing line without tension.
  • Automatically stops if film is empty or stuck.
  • Print sensors guarantee the precision for printed bags. (Optional)

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag Size(Max.)
Line x W x L (mm)
Thickness
of film (mm)
Capacity
(cycle/min.)
Power
Required
Machine Size
L x W x H(M)
SERVO
TYPE
SS4-700V 1x2x680x1200
2x2x305x1200
0.008~0.15  30~160x4 7.6KW 4.25x1.55x1.99
SS4-800V 1x2x780x1250
2x2x355x1200
8KW 4.25x1.65x1.99
SS4-1000V 1x2x980x1200
2x2x455x1200
9.5KW 4.25x1.85x1.99
SS6-800V 1x2x780x1200
2x2x355x1200
3x2x220x1200
30~160x6 8.8KW 4.41x1.65x1.99
SS6-1000V 1x2x980x1200
2x2x455x1200
3x2x320x1200
10.3KW 4.41x1.85x1.99
CLUTCH
&
BRAKE
TYPE
SS4-700 1x2x680x1010
2x2x305x1010
0.008~0.15  30~110x4 6.2KW 4.25x1.55x1.99
SS4-800 1x2x780x1010
2x2x355x1010
6.6KW 4.25x1.65x1.99
SS4-1000 1x2x980x1010
2x2x455x1010
30~105x4 6.8KW 4.25x1.85x1.99
SS6-800 1x2x780x1010
2x2x355x1010
3x2x220x1010
30~110x6 7.5KW 4.41x1.65x1.99
SS6-1000 1x2x980x1010
2x2x455x1010
3x2x320x1010
30~105x6 7.7KW 4.41x1.85x1.99
  • Specifications are subject to change without notice.



We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Multi Lane Bottom Sealing Bag Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
