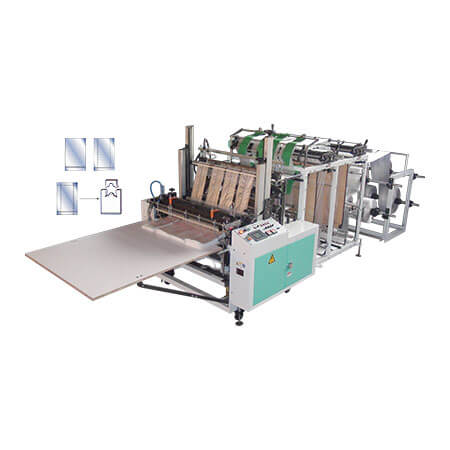

Multi Lane Bottom Sealing Bag Machine
Item No.: | SS Series |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
Multi-lane Bag Making Machine
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
MACHINE FEATURE:
- With easy alternation of sealing knife for shopping bags and plain bags.
- Adoption of electronic clutch and brake ensure accurate bag cutting and sealing within 1mm.
- Sensor controls input of film rolls, assuring perfect sealing line without tension.
- Automatically stops if film is empty or stuck.
- Print sensors guarantee the precision for printed bags. (Optional)
SPECIFICATIONS: P.S. Customization could be available.
Model | Bag Size(Max.) Line x W x L (mm) |
Thickness of film (mm) |
Capacity (cycle/min.) |
Power Required |
Machine Size L x W x H(M) |
|
SERVO TYPE |
SS4-700V | 1x2x680x1200 2x2x305x1200 |
0.008~0.15 | 30~160x4 | 7.6KW | 4.25x1.55x1.99 |
SS4-800V | 1x2x780x1250 2x2x355x1200 |
8KW | 4.25x1.65x1.99 | |||
SS4-1000V | 1x2x980x1200 2x2x455x1200 |
9.5KW | 4.25x1.85x1.99 | |||
SS6-800V | 1x2x780x1200 2x2x355x1200 3x2x220x1200 |
30~160x6 | 8.8KW | 4.41x1.65x1.99 | ||
SS6-1000V | 1x2x980x1200 2x2x455x1200 3x2x320x1200 |
10.3KW | 4.41x1.85x1.99 | |||
CLUTCH & BRAKE TYPE |
SS4-700 | 1x2x680x1010 2x2x305x1010 |
0.008~0.15 | 30~110x4 | 6.2KW | 4.25x1.55x1.99 |
SS4-800 | 1x2x780x1010 2x2x355x1010 |
6.6KW | 4.25x1.65x1.99 | |||
SS4-1000 | 1x2x980x1010 2x2x455x1010 |
30~105x4 | 6.8KW | 4.25x1.85x1.99 | ||
SS6-800 | 1x2x780x1010 2x2x355x1010 3x2x220x1010 |
30~110x6 | 7.5KW | 4.41x1.65x1.99 | ||
SS6-1000 | 1x2x980x1010 2x2x455x1010 3x2x320x1010 |
30~105x6 | 7.7KW | 4.41x1.85x1.99 |
- Specifications are subject to change without notice.
