Multi Function Side Sealing Shopping Bag Machine
| Item No.: | SVG-800PH |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products

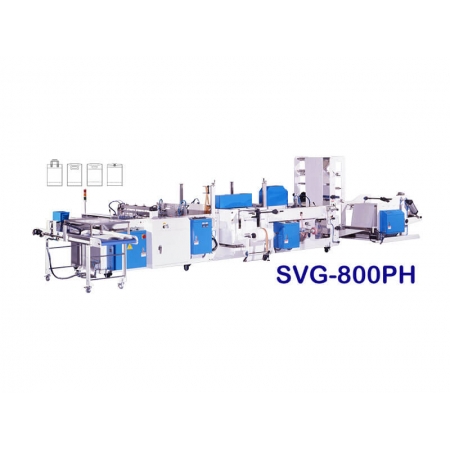

Fully Automatic Multi-function Side Sealing Shopping Bag Making Machine
MACHINE FEATURE:
SIDE SEALING HIGH SPEED MODEL
Production Speed：100 Bags/min
Optional Equipment：
SPECIFICATIONS: P.S. Customization could be available.
MACHINE FEATURE:
SIDE SEALING HIGH SPEED MODEL
Production Speed：100 Bags/min
Optional Equipment：
- Double Sealing Device
- Triangle Folder
- Stand-up Sealing Device
- Air shaft
- Air Compressor 7.5HP
- This machine is designed for its versatility to make different types of shopping bags, such as soft loop handle, die cut handle, poly draw and patch handle bags.
- Intelligent management system monitors and protects the machine from misuse.
- Advanced microprocessor motion control allows for quick length change and photo registration.
- Soft loop feeding system driven by pneumatic control provides precise and quick cutting and welding.
- Convenient auto stacker collects finished bags in an orderly fashion.
- Die cut punching system is equipped with high speed steel knife, designed for durability and easy maintenance.
- Poly draw inserting device automatically feeds string into the top folding and sealing area.
- Bag handle reinforcemane by patch handle system.
SPECIFICATIONS: P.S. Customization could be available.
| Model | Width(mm) | Length (mm) | Top Folding | Botton Gusseting | Max. Production Speed (bag/min) | Thickness of Film(mm) | Power required | Machine Size LxWxH(M) |
|||
| Soft Loop Handle Bag | Patch Handle Bag | Die Cut Bag | Poly-draw Bag | ||||||||
| SVG-800PH | Top Folding | 150~700 | Top Folding | 150~540 | 250~650 | Up to 75mm | Up to 65mm | All Bag:100 (bag length is 540mm) | 0.04~0.09 | 8.8KW | 7.3x2.0x2.2 |
| 280~540 | 150~540 | ||||||||||
| 280~700 | 150~700 | ||||||||||
- Specifications are subject to change without notice.
