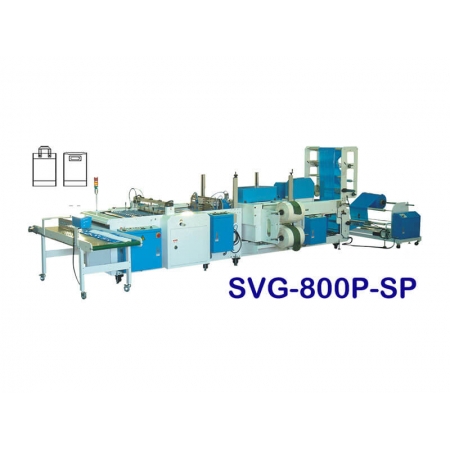

Multi Function Side Sealing Shopping Bag Machine
| Item No.: | SVG-800P-SP |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
Fully Automatic Multi-function Side Sealing Shopping Bag Making Machine
MACHINE FEATURE:
SIDE SEALING ECONOMICAL MODEL
Production Speed：55~60 Bags/min
Optional Equipment：
SPECIFICATIONS: P.S. Customization could be available.
MACHINE FEATURE:
SIDE SEALING ECONOMICAL MODEL
Production Speed：55~60 Bags/min
Optional Equipment：
- Double Sealing Device
- Stand Sealing Device
- Air Compressor 7.5HP 2. Triangle Folder
- Air shaft
- This machine features versatile bags like shopping bags, soft loop handle and patch handle bags etc.
- Intelligent management system monitors and protects the machine from misuse.
- The utilization of microprocessor as well as photo sensor provide a swift change for bag sizes and accuracy.
- Soft loop feeding system is driven by pneumatic control to allow precise and quick cutting and welding.
- Portable punching system enhance opening of bag.
- Convenient auto stacker collects finished bags in an orderly fashion.
- Die cut punching system equipped with high speed steel knife enchance durability and easy maintenance.
SPECIFICATIONS: P.S. Customization could be available.
| Model | Width(mm) | Length (mm) | Top Folding | Botton Gusseting | Max. Production Speed (bag/min) | Thickness of Film(mm) | Power required | Machine Size LxWxH(M) |
||||
| Soft Loop Handle Bag | Patch Handle Bag | Die Cut Bag | Poly-draw Bag | |||||||||
| SPD | SVG-800P-SPD | Top Folding | 150~700 | Top Folding | 250~760 | 250~650 | Up to 75mm | Up to 65mm | Soft loop : 55 Patch Bag : 60 Die Cut : 80 |
0.04~0.09 | 8.6KW | 8.6x2.9x2.0 |
| 280~540 | 150~540 | |||||||||||
| 280~600 | 150~700 | |||||||||||
| SVG-800PH-SPD | Top Folding | 150~700 | Top Folding | 250~760 | 250~650 | Up to 75mm | Up to 65mm | All Bag:100 (bag length is 540mm) |
0.04~0.09 | 8.8KW | 8.6x2.9x2.0 | |
| 280~540 | 150~540 | |||||||||||
| 280~600 | 150~700 | |||||||||||
| SP | SVG-800P-SP | Top Folding | 150~700 | - | 250~760 | 250~650 | Up to 75mm | Up to 65mm | Soft loop : 55 Patch Bag : 60 |
0.04~0.09 | 8.5KW | 8.4x2.9x2.0 |
| 280~540 | ||||||||||||
| 280~600 | ||||||||||||
| SVG-800PH-SP | Top Folding | 150~700 | - | 250~760 | 250~650 | Up to 75mm | Up to 65mm | Soft loop : 100 Patch Bag :100 |
0.04~0.09 | 8.8KW | 8.4x2.9x2.0 | |
| 280~540 | ||||||||||||
| 280~600 | ||||||||||||
- Specifications are subject to change without notice.
