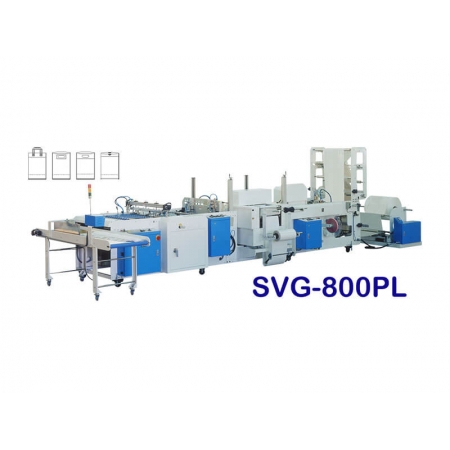

Multi Function Side Sealing Shopping Bag Machine
| Item No.: | SVG-800PL |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
Fully Automatic Multi-function Side Sealing Shopping Bag Making Machine
MACHINE FEATURE:
SIDE SEALING ECONOMICAL MODEL
Soft Loop Handle Bags：55 Bags/min
Die Cut Handle Bags：80 Bags/min
Patch Handle Bags：60 Bags/min
Poly Draw Bags：80 Bags/min
Optional Equipment：
SPECIFICATIONS: P.S. Customization could be available.
MACHINE FEATURE:
SIDE SEALING ECONOMICAL MODEL
Soft Loop Handle Bags：55 Bags/min
Die Cut Handle Bags：80 Bags/min
Patch Handle Bags：60 Bags/min
Poly Draw Bags：80 Bags/min
Optional Equipment：
- Double Sealing Device
- Triangle Folder
- Stand Sealing Device
- Air shaft
- Air Compressor 7.5HP
- This machine is designed for its versatility to make different types of shopping bags, such as soft loop handle, die cut handle, poly-draw and patch handle bags.
- Intelligent management system avoid improper operation by making it under surveilliance.
- Advanced microprocessor motion control allows for quick length change and photo registration.
- Soft loop feeding system is driven by pneumatic control to allow precise changes and quick cutting and welding.
- Poly-draw automaticly inserting device.
- Patch handle system attaches PE film to reinforce the bag handle.
- Convenient auto stacker collects finished bags in an orderly fashion.
- Die cut punching system is equippedwith high speed steel knife, designed for durability and easy maintenance.
SPECIFICATIONS: P.S. Customization could be available.
| Model | Width(mm) | Length (mm) | Top Folding | Botton Gusseting | Max. Production Speed (bag/min) | Thickness of Film(mm) | Power required | Machine Size LxWxH(M) |
|||
| Soft Loop Handle Bag | Patch Handle Bag | Die Cut Bag | Poly-draw Bag | ||||||||
| SVG-800PL | Top Folding | 150~600 | Top Folding | 150~540 | 250~650 | Up to 60mm | Up to 60mm | Soft loop:55 Die Cut:80 Path Bag:60 Poly Draw:80 |
0.04~0.09 | 8.6KW | 8.7x2.9x2.0 |
| 280~540 | 150~540 | ||||||||||
| 280~600 | 150~600 | ||||||||||
- Specifications are subject to change without notice.
