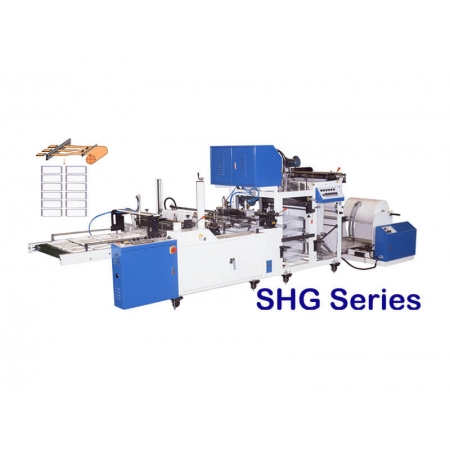

Multi Bag Machine With Slit Seal - SHG Series

Multi Bag Machine With Slit Seal

Item No.: SHG Series
Supplier Details
SHENG-FON PLASTIC MACHINE CO., LTD.
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Bag Making Machine with Slit-Seal

MACHINE FEATURE:
  • The unwinder is combined with EPC and auto-tension control system.
  • Bottom seal bag combined with hot slit seal function, can easily produce large sums of small width bags.
  • Only one width master roll, can produce multi-lane bags with small widths.
  • Changing slitting width is easy and quick.
  • Different widths of bags with hot slitting may be produced simultaneously.
  • After adding the multi-lane rewinder, it can produce continuous perforate products on roll. (Optional)
  • Can be equipped with punching unit. (Optional)

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag size (mm) Capacity
(cycle/min.)		 Thickness of
Film(mm)		 Jumbo Roll
Width		 Main Motor
Line Width(mm) Length(mm)
SHG-500-5 1 50~450 50~1010 30~120 0.03~0.15 200~440 AC 1HP 4P & Gear 15:1
2 50~225
3 50~150
4 50~112
5 50~90
SHG-800-7 1 50~750 50~1010 30~120 0.03~0.15 200~740 AC 1HP 4P & Gear 15:1
2 50~375
3 50~250
4 50~187
5 50~150
6 50~125
7 50~100
8 50~87
SHG-1000-8 1 50~900 50~1010 30~120 0.03~0.15 200~940 AC 1HP 4P & Gear 15:1
2 50~450
3 50~300
4 50~225
5 50~180
6 50~150
7 50~125
8 50~112
9 50~100
SHG-1200-10 1 50~1100 50~1010 30~120 0.03~0.15 200~1140 AC 1HP 4P & Gear 15:1
2 50~550
3 50~362
4 50~275
5 50~212
6 50~181
7 50~150
8 50~137
9 50~112
10 50~100
  • Specifications are subject to change without notice.
