MP-usbCAN
| Item No.: | MPCAN-CAN-U2C-CANtoUSB |
Supplier Details
Country: Taiwan
City: Tainan
Address: Building A, No.143, Ln. 152, Sec. 1, Baoda Rd., Guiren Dist.
TEL: +886-6-3303000
Fax: +886-6-3302526
Online Showroom:
30 Products
MP-usbCAN
Part No:MPCAN-CAN-U2C-CANtoUSB
General Information:

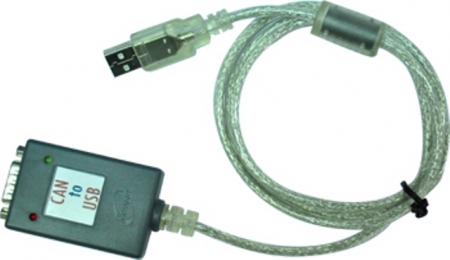

CANtoUSB is a very small and inexpensive dongle that plugs into any PC USB Port and gives an instant CAN bus connectivity. This means it can be treated by software as a standard COM Port (serial RS232 port), which eliminates the need for any extra drivers by installing a direct driver DLL for faster communications and higher CAN bus loads.
Sending and receiving can be done in standard ASCII format or using the windows-threaded CANtoUSB DLL or ActiveX controller.
Dimensions:
Length: 55mm, Width: 36mm, Height: 16mm.
Including a 1-meter shielded USB cable.
Specifications:
Can handle up to 1Mbit/s CAN bus bit rate
Industrial Temperature range: -40C to +85C
USB 2.0 Full Speed, uses FTDI FT245RL
Philips SJA1000 CAN Controller running at 16Mhz
Philips 82C251 CAN Transceiver (Fully Compatible with ISO 11898-24V)
Compliant with CAN 2.0A (11 bit IDs) and CAN 2.0B (29 bit IDs)
ID Filter Function ON/OFF
ID Filter Function with color display
Controllable Standard (STD) ID and Extended (EXT) ID transfer
Bit rate configurable
Supports RTR frames
32 CAN frames deep FIFO buffer for incoming frames in CANtoUSB firmware
Time Stamp option in ms for incoming frames
CAN bus connection according to the CiA DS102-1 standard
Power supplied via USB
Free Interface DLL and ActiveX controller or low level ASCII Commands via the USB driver
Free Linux driver available
Green LED for CAN bus activity
Red LED for CAN bus error activity
Firmware updatable via USB
CE Approved
RoHS & WEEE Compliant
Features:
The module plugs directly into a standard USB port and provides a standard DB9 male output to CAN systems according to CiA (CAN in Automation) DS102-1 recommendations.
It is self-powered from USB.
It consumes maximum 100mA, but normally it is no more than 60mA (this depends on BUS load and eventual CAN cable errors etc.).
Use your own RS232 LIB/drivers (in e.g. Visual Basic, Delphi, C++ etc.) together with the free Virtual COM port driver or use the free Direct driver DLL (see Download page for drivers).
Works on Windows and Linux platforms.
Easy to migrate from CAN232 to CANtoUSB with some small software changes.
Free Windows-threaded CANtoUSB API DLL or use the ActiveX controller, write applications in a snap.
For more details, please go to our website: www.microport.com.tw
