MPPT Solar Charge Controller - MS01

MPPT Solar Charge Controller

Item No.: MS01
Supplier Details
Country: Taiwan
City: Tainan City
Address: No,168 Yongkehuan Rd.,Yongkang Dist.
TEL: +886-06-2022202
Fax: +886-06-2012520
Online Showroom: 41 Products
Hengs Technology Co., Ltd is exclusive agency in Taiwan Of Morningstar Charge Controller.

The charge Controller have been a vital component in a myriad of off-grid PV system.  It’s prevent that over charge and over loading by battery, and extend the battery using life. Moreover, the some charge controller have advanced function, like lighting controller PLC control, remote monitoring…etc. The Morningstar charge controller has good quality with 2-5 warranty.

The characteristic for MPPT charge controller series

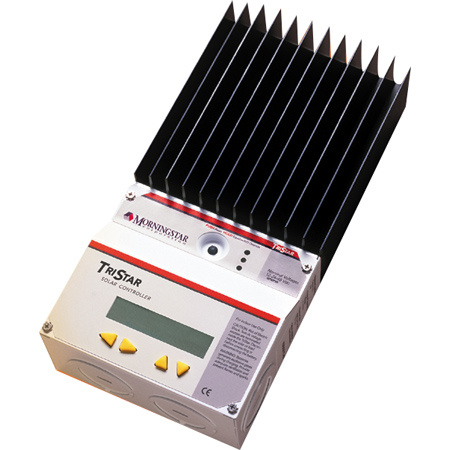

TriStar MPPT : Morningstar’s TriStar MPPT solar controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW

Morningstar’s TriStar MPPT 600V charge controller (TS-MPPT-600V) is a brand new addition to our world-leading TriStar MPPT solar controller family, which was first introduced in 2009 and has become the MPPT controller of choice for many large, global, off-grid PV applications.

SunSaver MPPT : Morningstar’s SunSaver MPPT™ solar controller with TrakStar™ Technology is an advanced maximum power point tracking (MPPT) battery charger for off-grid PV systems

Specification


MPPT CONTROLLERS

MPPT:  Maximum Power Point Tracking

TriStar™ MPPT

See ACCESSORIES for TS-MPPT:  TS-M-2, TS-M-2-600V, TS-RM-2, GFPD, HUB-1, RD-1

TS-MPPT-45

TriStar MPPT 45 amp (12, 24, 36, or 48 volts), includes RTS

TS-MPPT-60

TriStar MPPT 60 amp (12, 24, 36, or 48 volts), includes RTS

TS-MPPT-60-600V-48 NEW!

TriStar MPPT 60 amp (600V solar, for 48V battery) & standard conduit box
(includes RTS)

 TS-MPPT-60-600V-48-DB NEW!

TriStar MPPT 60 amp (600V solar, for 48V battery) & grounded Disconnect Box
(with RTS, PV disconnect, battery circuit breaker, 4 bus bars & 2 DIN rails)

SunSaver™ MPPT

See ACCESSORIES for SS-MPPT:  RM-1, HUB-1,  RTS, DIN-1

SS-MPPT-15L

SunSaver MPPT 15 amp (12/24 volts)
