Description
HDTV encoder systems are for broadcast and professional use; MHE-5000 delivers superior video quality in compact and lightweight units. They are suitable for a broad range of applications, including content delivery, relays and encoding for program and CM servers.

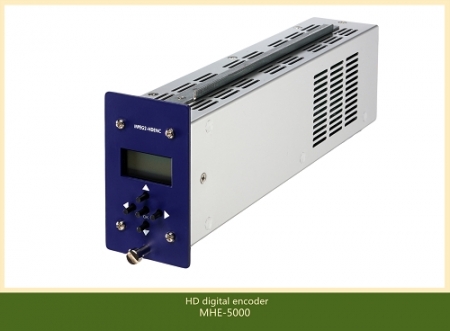

The MHE-5000 is a real time High Definition MPEG2 digital video encoder which supports all standard video and audio signals, including Component Video, S-VIDEO and analogue composite video etc.

Features
 Quick Boot-up, Excellent for real time application
 Multiple video format compatibility including 1080i, 720p, 576i & 480i
 Improved Cinema Content capabilities
 User Friendly Front Panel Operation
 Stand along control system
 RoHS Compliant

Specifications

Video Input Format HDMI / Component Video (Y/Pb/Pr) /Composited Video(CVBS)
Encoding Format MPEG-2 Video
Profile/ Level HDTV: MP@HL, 422P@HL
SDTV: MP@ML, 422P@ML
Video Format (pixels)
And Resolution 1080i: 1920 x 1080, 1440 x 1080   60Hz/50Hz
720p: 1280 x 720   60Hz/50Hz
576i: 720 x 576   PAL
480i: 720 x 480, 512i: 720 x 512   NTSC
Frame Rate (fps) 1080i: 25 / 29.97 / 30 (SMPTE274M)
720p: 50 / 59.94 / 60 (SMPTE296M)
576i: 25 (ITU-R BT.656-4)
480i / 512i: 29.97 (SMPTE125M)
Encoding Mode CBR
Audio Input Format AES / EBU: 2ch
Analog Input 1x Analog Stereo
Sampling Rate 48kHz
Quantized Bit Length 16 bits
Encoding Format MPEG-1 Audio Layer II: 1ch / 2ch (dual-mono, stereo) ISO/IEC11172-3 compliant
Multiplexing Output Interface ASI
Stream Format Transport Stream (TS)
Output Rate 5.5~80Mbps
Multiplexing 1 channel video and 1channel audio
Control Local RS232, LCD & Button, Ethernet
LCD Panel & Button LCD Display, Up/Down/Left/Right/OK
Ethernet TCP/IP Telnet Protocol
10/100 Base-T
RS232 Debug Port Baud Rate 115200 baud/s
Mode Menu Driven
System Stream Type MPEG-2 TS (188 / 204byte)
Output interface DVB-ASI
Max. Output Rate HDTV: 160Mbps
Internal Test Signal Video: Color Bar
General Dimensions 2U 19" Half-rack size W53 x D250 x H85 (mm)
Weight (typical) 1.0kg
Power Source DC5V 0.3A/ DC12V,0.5ASMPS
Power Consumption 3W
RoHS Compliant YES
******All specifications are subject to change without notice.
