Mini PCI Express Socket - 119A-70A00-R02

Mini PCI Express Socket

Item No.: 119A-70A00-R02
Supplier Details
ATTEND Technology Inc.
Country: Taiwan
City: New Taipei City 221
Address: 10F-6, No.81, Sec. 1,Xintai 5th Rd., Xizhi-Dist.,
TEL: +886-02-26987028
Fax: +--
Online Showroom: 5 Products

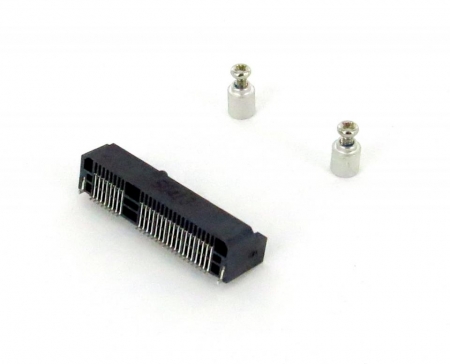

Mini PCI Express Socket H7.0mm, Stand off 7.0mm SPECIFICATION: ELECTRICAL Current Rating: 0.3A per pin Voltage Rating: 25VAC Contact Resistance: 30mΩ Insulation Resistance: 500MΩ Dielectric Withstanding Voltage: 250VAC MECHANICAL Durability: 50 Cycle Contact Normal Force: 50gf per pin min. Contact Retention Force: 180gf per pin min. ENVIRONMENTAL Operating temperature range: -40°C~+90°C Storage temperature range: -40°C~+90°C SOLDER ABILITY Recommended IR Reflow(Wave Soldering) Temperature: 260°C
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Mini PCI Express Socket

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
