Mifare Readers
| Item No.: | MF700 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 8F, No. 31 Lane 169, Kang-Ning Street, Hsi-Chih Dist
TEL: +886-2-26954214
Fax: +886-2-26954213
Online Showroom:
84 Products

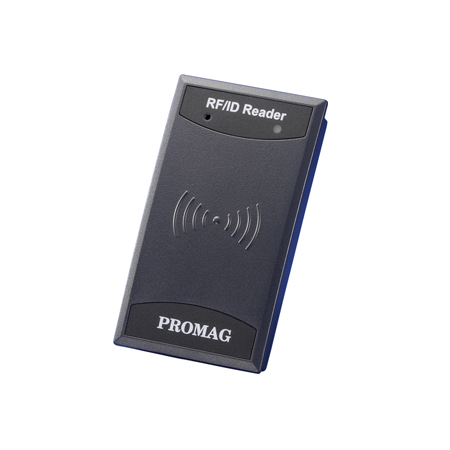

Configurable Mifare® (MAD) Sector Reader
Introduction:
MF700 is an user configurable Mifare® sector data reader. It can be configured to read Mifare® card with MAD1/MAD2 standard in a Mifare® application open system, or can be configured to read the user-defined sector data (Non-MAD) in a user defined closed system. Output interface can be configured as an RS232 output,or Wiegand output or MSR ABA TK2.
MF700 also can be set with a Reader ID number for multi-unit communication.
Features:
·Possible to be installed on metal surface
·Supports MAD1/MAD2 standard and customer MAD-AID setting
·Supports Non-MAD format with user-defined sector number.
·Supports Multi Sectors
·Reads Mifare® Standard 4K or Mifare® Standard 1K card
·Sets Reader ID number for multi-link application
·Three output interfaces: Wiegand (Default), RS232 and MSR ABA TK2
·Wiegand output is selectable from 26 bits to 128 bits
·RS232 output packet can be set with Header, Reader ID and trailer
·Internal LED and buzzer are configurable
· Weather resistant
· Also available with stylish wood housing
※ Mifare is a registered trademark of Philips Electronics N.V.Applications:
·Access Control System
·Time attendance
·Guest registration system
·Academic service
·Information service
Specifications:
Ordering information:
MF700SK: MF700 reader + MF700KIT configure kit + PCR310U card issuer + Card issue and utility software + 9VDC power adaptor + MFA01 Mifare standard 1K card * 3 pcs
MF700: MF700 reader
※ Specification is subject to change without notice.
Introduction:
MF700 is an user configurable Mifare® sector data reader. It can be configured to read Mifare® card with MAD1/MAD2 standard in a Mifare® application open system, or can be configured to read the user-defined sector data (Non-MAD) in a user defined closed system. Output interface can be configured as an RS232 output,or Wiegand output or MSR ABA TK2.
MF700 also can be set with a Reader ID number for multi-unit communication.
Features:
·Possible to be installed on metal surface
·Supports MAD1/MAD2 standard and customer MAD-AID setting
·Supports Non-MAD format with user-defined sector number.
·Supports Multi Sectors
·Reads Mifare® Standard 4K or Mifare® Standard 1K card
·Sets Reader ID number for multi-link application
·Three output interfaces: Wiegand (Default), RS232 and MSR ABA TK2
·Wiegand output is selectable from 26 bits to 128 bits
·RS232 output packet can be set with Header, Reader ID and trailer
·Internal LED and buzzer are configurable
· Weather resistant
· Also available with stylish wood housing
※ Mifare is a registered trademark of Philips Electronics N.V.Applications:
·Access Control System
·Time attendance
·Guest registration system
·Academic service
·Information service
Specifications:
| Power Requirements | 7.5 ~ 24 Volts ※ A linear regulator is recommended |
| Interface | Wiegand 26 bits ~ 128bits Selectable RS232, MSR ABA TK2 |
| Card type | Mifare MF1 standard cards for 1024 / 4096 bytes |
| Maximum reading distance | Up to 50 mm with MFA01 card in ideal conditions |
| Frequency | 13.56 MHz standard |
| Card format | MAD1 / MAD2 |
| Audio / Visual Indication | Internal LED and Buzzer |
| Dimensions | 83(L) x 47 (W) x 16(D) mm |
| Housing material | ABS |
| Environment | Operating temperature 0 °C ~ +60 °C Operating relative humidity 10~90% |
Ordering information:
MF700SK: MF700 reader + MF700KIT configure kit + PCR310U card issuer + Card issue and utility software + 9VDC power adaptor + MFA01 Mifare standard 1K card * 3 pcs
MF700: MF700 reader
※ Specification is subject to change without notice.
