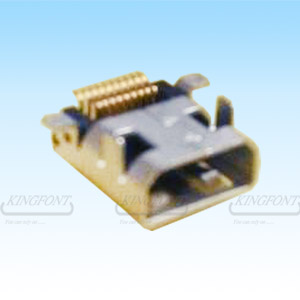

Product Name:HDMI D Type
Part No: HDMT1-219 XX BF0 X
(1) (2)
(1) Contact Area
Plating:
01: Gold Flash Plating
30: 30U” Gold Plating
(2) Package:
1: TAPE REEL
Pitch: 0.20mm
Number of port: 1
Circuits: 19
RoHS compliant
Net
Weight: 0.33 g
Packing: 1. Tape and Reel: 1200 pcs/Reel,
8Reels/Carton
SPECIFICATION:
Electrical:
1. Current rating: 0.8 Amps
Maximum
2. Voltage rating: 30 VAC
3. Operation temperature: -30℃ to +85℃
4. Contact resistance:
10
Milliohms Maximum Initial
30
Milliohms Maximum Final
5. Insulation
resistance: 100 Megohms Minimum (Unmated Connectors)
6. Dielectric
strength: 250VAC/1minute (Unmated Connectors)
7. Durability:
5000 Cycles
Environmental:
1. Operating temperature: -25℃ ~ 85℃
MATERIAL:
1. Insulator:High Temperature
plastic , UL 94V-0
2. Terminal:Copper
Alloy
3. Shield: Stainless Steel
4. Finishes:
Terminals: Gold on Contact
Area 30 U” min. or Gold Flash
2U” min. Gold Flash on
Solder Tails
And 80u” min. Nickel Underplate
Overall
PRODUCT
FEATURES: Is an all-digital video and
audio transmission interface, can be transmitted without pressure Reduced
audio and video signals.
