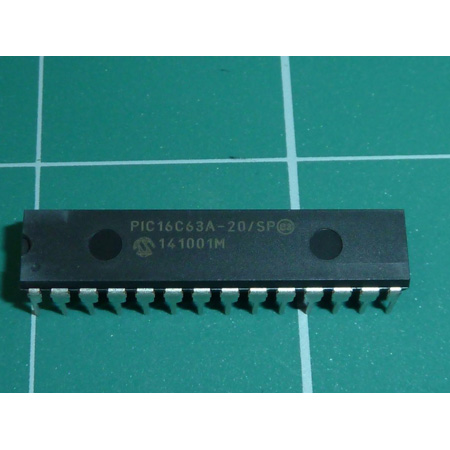

CMOS Microcontroller - PIC16C63A-20/SP

CMOS Microcontroller

Item No.: PIC16C63A-20/SP
Supplier Details
Saint Nation Co.,Ltd.
Country: Taiwan
City: Taipei
Address: 11493 8F, No.79, Chow Tze St
TEL: +886-2-55825588
Fax: +886-2-55805500
Online Showroom: 78 Products
Microcontrollers
  1. 8-Bit CMOS Microcontrollers with A/D Converter
  2. Description: The PIC16C63A/65B/73B/74B devices are low cost, high performance, CMOS, fully-static, 8-bit microcontrollers in the PIC16CXX mid-range family.
  3. Features:
    • High performance RISC CPU
    • Only 35 single word instructions to learn
    • All single cycle instructions except for program branches which are two cycle
    • Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle 4 K x 14 words of Program Memory, 192 x 8 bytes of Data Memory (RAM)
    • Interrupt capability Eight-level deep hardware stack
    • Direct, indirect and relative addressing modes Power-on Reset (POR)
    • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
    • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
    • Programmable code protection Power-saving SLEEP mode
  4. Delivery time: Usually 5-7 days from distributor
  5. Payment: T/T in advance
