8 Bit Microcontroller

Item No.:

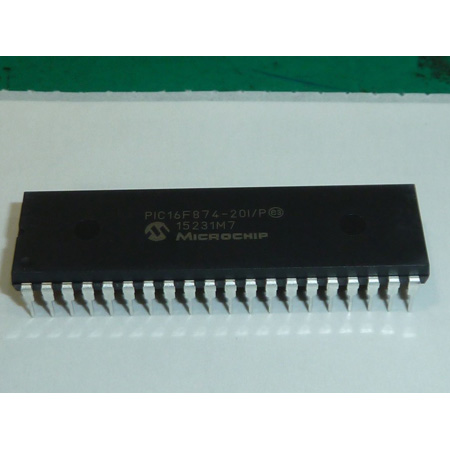

PIC16F874-20I/P

Supplier Details

Country: Taiwan

City: Taipei

Address: 11493 8F, No.79, Chow Tze St

TEL: +886-2-55825588

Fax: +886-2-55805500

Online Showroom: 78 Products

Microcontrollers

28/40-Pin 8-Bit CMOS FLASH Microcontrollers.
Description: The PIC16F876/873 devices come in 28-pin packages and the PIC16F877/874 devices come in 40-pin packages.
The Parallel Slave Port is not implemented on the 28-pin devices.
Features:
- High performance RISC CPU
- Only 35 single word instructions to learn
- All single cycle instructions except for program branches which are two cycle
- Operating speed: DC 20 MHz clock input DC 200 ns instruction cycle Up to 8K x 14 words of FLASH Program Memory, Up to 368 x 8 bytes of Data Memory (RAM) Up to 256 x 8 bytes of EEPROM Data Memory
- Pinout compatible to the PIC16C73B/74B/76/77
- Interrupt capability (up to 14 sources)
- Eight level deep hardware stack
- Direct, indirect and relative addressing modes
- Power-on Reset (POR)
- Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Delivery time: Usually 5-7 days from distributor
Payment: T/T in advance
