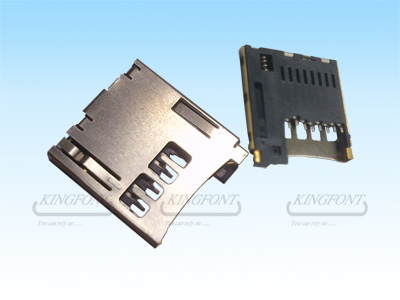

Product Name: Micro
SD (Trans Flash) Card Connector
Push Push Type
Part No:
TFCMF-208 XX B0T X -UTE-A
(1) (2)
(1) Contact area plating:
01:
Gold flash plating
05: 5u” Gold plating
10: 10u” Gold plating
(2) Packing:
0: Tray
1: Tape & Reel
Pitch: 1.1mm
Number of port: 1
Circuits: 8
RoHS compliant
Net
Weight: 0.5g
Packing:
0:Tray: 77pcs/Tray; 45trays/inner carton
1:Tape&Reel:1300pcs/Reel;
10 reels/Carton
APPLICATION:
1. Notebook PC
2. Digital camera
3. Mobile phone
SPECIFICATION:
Electrical:
1. Current rating: 0.5 A DC(Per pin)
2. Voltage: 100V DC, 100V AC(rms) (Per pin)
Environmental:
1. Operating temperature: -40℃ ~ 85℃
2. Storage
Temperature Range: -40℃ ~ 85℃
MATERIAL:
1. Housing:Thermoplastic UL94V-0 Color: Black
2. Push Bar:Thermoplastic UL94V-0 Color: Black
3. Contact:Phosphor Bronze
Shell: SUS 304
4. Plating:
Contact area: Gold plated
Solder area: 100u” Tin plated
Under plated: 20u” Nickel
PRODUCT FEATURES:
