Micro SD (Trans Flash) Card Connector Manual Type - TFAMF-111XX BT0X

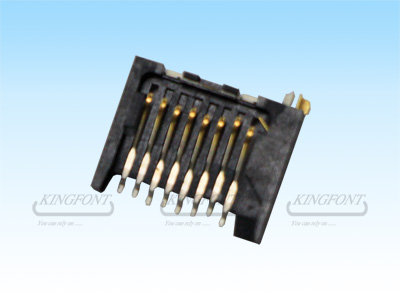

Micro SD (Trans Flash) Card Connector Manual Type

Item No.: TFAMF-111XX BT0X
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 17F.-3, 738, Zhongzheng Road., Zhonghe Dist., New Taipei City 235, TAIWAN (R.O.C.)
TEL: +886-2-82261520
Fax: +886-2-82262124
Online Showroom: 17 Products


Product Name:Micro SD (Trans Flash) Card Connector Manual Type
Part No:TFAMF-111 XX BT0 X
                               (1)    (2)
      (1) Contact area plating:
              01: Gold flash plating
              05: 5u” Gold plating
      (2) Packing:
              0: Tray
              1: Tape & Reel
Pitch: 1.1mm
Number of port: 1
Circuits: 8
RoHS compliant
Net Weight: 0.2g
Packing: 0:Tray: 130pcs/Tray; 20trays/inner carton    1:Tape&Reel:1200pcs/Reel; 9 reels/Carton


APPLICATION:
   1.       Notebook PC
   2.       Digital camera Mobile phone


SPECIFICATION:
   Electrical:
         1.      Current rating: 0.5 A DC(Per pin)
         2.      Voltage: 125V AC Environmental: Operating temperature: -25℃ ~ 85℃
   MATERIAL:
         1.  Housing:Thermoplastic UL94V-0   Color: Black
         2.  Contact:Phosphor Bronze
         3.  Plating:Tin 100u”at Solder Tail
         4.  Plating:
                        Contact area: Gold plated
                        Solder area: 100u” Tin plated
                        Under plated: 50u” Nickel


PRODUCT FEATURES:
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Micro SD (Trans Flash) Card Connector Manual Type

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
