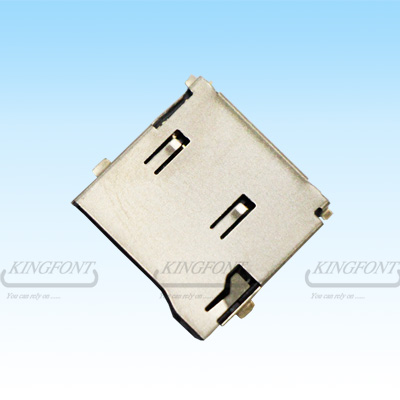

Micro SD Conn. PUSH-PUSH - TFCMF-308XXB0TX-G

Micro SD Conn. PUSH-PUSH

Item No.: TFCMF-308XXB0TX-G
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 17F.-3, 738, Zhongzheng Road., Zhonghe Dist., New Taipei City 235, TAIWAN (R.O.C.)
TEL: +886-2-82261520
Fax: +886-2-82262124
Online Showroom: 17 Products


Product Name:Micro SD Conn. PUSH-PUSH
Part No:TFCMF-308 XX B0T X -G
                       (1)    (2)
   (1) Contact area plating:
            01: Gold flash plating
   (2) Packing:
            1: Tape & Reel


Pitch: 1.1mm
Number of port: 1
Circuits: 8
RoHS compliant
Net Weight: 0.6g
Packing: 1: Tape & Reel: 10000pcs/Reel; 10 Reel /carton


APPLICATION:
   1.       Notebook PC
   2.       Digital camera Mobile phone


SPECIFICATION:
   Electrical:
          1.      Current rating: 0.5 A DC(Per pin)
          2.      Voltage: 500V AC(rms)
          3.      Contact resistance: 40 Ω MAX
          4.      Dielectric withstanding voltage: 500V AC(rms)
          5.      Insulating Resistance: 500Ω MIN. (Final) 100Ω MIN.
   Environmental: Operating temperature: -25℃ ~ 90℃
   MATERIAL:
          1.      Insulator: HI-Temp Plastic UL 94V-0 Rated
          2.      Contact: Copper Alloy(t=0.15mm)
          3.      Shell: Stainless Steel(t=0.15mm)
          4.      Spring: SWP
    Mechanical Characteristics:
             Card Push Insertion/Out Force: 1.20kgf Max.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Micro SD Conn. PUSH-PUSH

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
