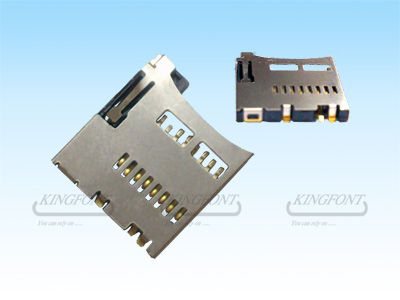

Product Name:Micro SD
Conn. Push
Push Type, H=1.90mm(normal open)
Part No:TFCMF-308 XX B1T 1 -G
(1) (2)
(1) Contact area plating:
01:
Gold flash plating
(2) Packing:
1: Tape & Reel
Pitch: 1.1mm
Number of port: 1
Circuits: 8
RoHS compliant
Net
Weight: 0.4g
Packing:
1: Tape & Reel: 10000pcs/Reel; 10 Reel /carton
APPLICATION:
1. Notebook PC
2. Digital camera
3. Mobile phone
SPECIFICATION:
Electrical:
1. Current rating: 0.5 A DC
2. Voltage: 100V DC,AC(rms)100V
3. Contact resistance: 100 Ω MAX INITIALLY.
4. Dielectric withstanding
voltage: 500V AC FOR 1 MINUTE
5. Insulating Resistance: 1000Ω MIN. at 500 VDC
Environmental:
Operating
temperature: -25℃ ~ 85℃
MATERIAL:
1. Mating durability:10000 cycles
2. Insertion force: 2.0 Kgf Max.
3. Extraction force: 0.5 Kgf
Min.
4. Mating cycles:10000 cycles at
the speed rate of 400-600 cycles/h
Without distortion of plastic and serious wear and tear in terminal, No
signal break.
