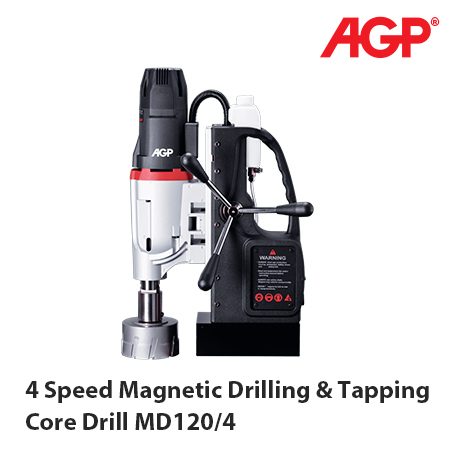

4 Speed Magnetic Drilling & Tapping Core Drill MD120/4
MD120/4
MD120 Introduction
The MD120/4 is AGP’s highest capacity magnetic drill with a wide range of capabilities.
For both HSS and TCT cutters, it is rated at 120 mm diameter and 50 mm length. The
4-speed gearbox with mechanical slip clutch allows a wide range cutting speeds which
is useful for both varying cutter diameters, as well as different types of cutting tools to
be used. In addition to this, there is a variable electronic constant speed control for even
more versatility in precisely matching the cutting speed to the application. The number
3 Morse taper (MT3) spindle makes it easy to change between different styles of arbors
and adaptors to use a large array of cutting tools. Since MT3 is a common, industry-wide
standard, many different arbors and MT3 shank cutting tools can be found in the market
and can be shared with other equipment, such as drill presses, etc. Reducers can also
be used to mount MT2 and MT1 tools as well. The reversing switch, together with the
optional #1 and #2 tapping adaptor arbors allow the machine to easily perform tapping
using outside-sourced clamp collets.
Target Groups and Applications
For operators in the metalworking, fabrication, steel frame construction, bridge building
industry, or anyone who needs to perform a wide array of heavy steel drilling, up to 120
mm diameter, this is the tool for the job. With its powerful motor, strong magnet, and full
range of features, this tool’s performance in thick steel is outstanding.
A 4-speed, 2000 W heavy-duty magnetic drilling machine for cutters up to Ø120 x 50 mm, twist drills up to 32 mm, and taps up to M32. The MT3 arbor can also fit many other types of cutting tools.  The variable constant speed and sophisticated electronics allow optimized cutting speeds. The gearbox features a mechanical clutch for safety.

• 4 speed gear box with mechanical clutch for optimized torque and cutting speed for a wide range of cutting tools.
• Built-in cutting fluid system for cutters with unique through-the-spindle fluid feed.
• Stepless variable speed wheel for electronic speed control with constant speed circuitry.
• Reversing Switch for tapping.
• Special MT3 high-torque tang drive spindle (mounts any MT3 accessory).

Power:
2000 W (220-240 V) ｜ 1700 W (110-120 V)
Max. Capacity:
Annular Cutters: 120 mm x 50 mm ｜ Twist Drills: 32 mm x 200 mm ｜ Taps: 32 mm
Type:
Annular Cutting ｜ Twist Drilling ｜ Tapping, and more
