Drilling And Tapping Machine
Item No.: | ST50 |
Supplier Details
Country: Taiwan
City: Yunlin County 640
Address: No. 2, Kejia Rd., Douliu City
TEL: +886-5-5518689
Fax: +886-5-5518635
Online Showroom:
74 Products

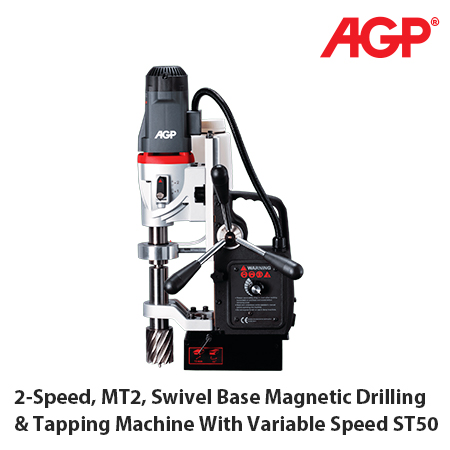

2-Speed, MT2, Swivel Base Magnetic Drilling & Tapping Machine With Variable Speed ST50
ST50
A versatile MT2, two speed/ variable speed 1100 W magnetic core drilling machine for cutters up to Ø 50 x 50 mm, twist drills up to 23 mm, and taps up to M20. The MT2 arbor can also fit many other types of cutting tools. Features swivel base for access to difficult to reach areas. The variable speed and sophisticated electronics allow optimized cutting speeds.
1100 W
Max. Capacity:
Annular Cutters: 50 mm x 50 mm | Twist Drills: 20 mm x 150 mm | Taps: 20 mm
Type:
Annular Cutting | Twist Drilling | Tapping, and more
ST50
A versatile MT2, two speed/ variable speed 1100 W magnetic core drilling machine for cutters up to Ø 50 x 50 mm, twist drills up to 23 mm, and taps up to M20. The MT2 arbor can also fit many other types of cutting tools. Features swivel base for access to difficult to reach areas. The variable speed and sophisticated electronics allow optimized cutting speeds.
- 2 speed gear box with mechanical clutch for optimized torque and cutting speed.
- Electronic Variable Speed Knob for optimized cutting speed.
- Built-in cutting fluid system with unique through-the-spindle fluid feed.
- Swivel Magnet Base equipped for difficult to reach areas.
- Reversing Switch for tapping.
- Arbor Support Bracket.
1100 W
Max. Capacity:
Annular Cutters: 50 mm x 50 mm | Twist Drills: 20 mm x 150 mm | Taps: 20 mm
Type:
Annular Cutting | Twist Drilling | Tapping, and more
