Steel Beveling Tool
Item No.: | EB24R |
Supplier Details
Country: Taiwan
City: Yunlin County 640
Address: No. 2, Kejia Rd., Douliu City
TEL: +886-5-5518689
Fax: +886-5-5518635
Online Showroom:
74 Products

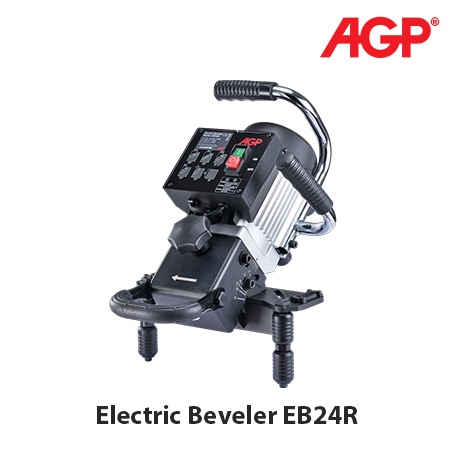

Electric Beveler EB24R
EB24R
A plate beveler for angles from 0° to 60° with a maximum land width of 21 mm with facing off and pipe beveling capability from 150 to 350 mm.
1100 W
Max. Capacity:
60 Deg. 18 mm | 45 Deg. 20 mm | 37.5 Deg. 17.8 mm | 30 Deg. 16.7 mm | 15 Deg. 15.7 mm | 0 Deg. 21 mm
Type:
Plate Beveler
EB24R
A plate beveler for angles from 0° to 60° with a maximum land width of 21 mm with facing off and pipe beveling capability from 150 to 350 mm.
- AC Induction Motor for steady speed, low noise, and long life.
- 12 Carbide inserts. Tool Holder ISO SPKN 120308. Bevel widths on straight and round materials.
- Angular Adjustment Screw with angular adjustment from 0-60 Deg.
- Depth-adjuster knob.
- Depth Lock Screw.
- Chamfer Height Scale.
- Rollers for smooth operation.
1100 W
Max. Capacity:
60 Deg. 18 mm | 45 Deg. 20 mm | 37.5 Deg. 17.8 mm | 30 Deg. 16.7 mm | 15 Deg. 15.7 mm | 0 Deg. 21 mm
Type:
Plate Beveler
