Magnetic Drill Machine
| Item No.: | SMD502 |
Supplier Details
Country: Taiwan
City: Yunlin County 640
Address: No. 2, Kejia Rd., Douliu City
TEL: +886-5-5518689
Fax: +886-5-5518635
Online Showroom:
74 Products

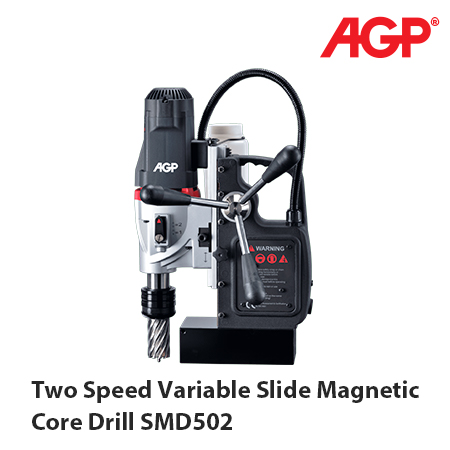

Two Speed Variable Slide Magnetic Core Drill SMD502
SMD502
Introduction
Target group & Applications
SMD352 & SMD502 Introduction
The SMD two-speed series machines are a step up from the SMD351 series because they have
the additional feature of two-speed gearbox, which allows a wider range of cutter diameters
to be used while maintaining maximum torque. For drilling with annular cutters in steel, the
SMD352 is rated at 42 mm and the SMD502 is rated at 50 mm, with both using up to 50 mm
length cutters. The difference between these two models is in their gear ratios. Generally, the
gear ratio of the SMD502 is more optimized for using large diameter HSS cutters, while the
gearing of the SMD352 is optimized for using TCT cutters and slightly smaller HSS cutters. But
of course, either machine can mount either type of cutter.
The SMD series feature a quick-release spindle, allowing easy cutter changes. Although their
primary purpose is drilling with annular cutters, they are also well adapted to using other
cutting tools. As annular cutters cannot make holes smaller than about 12mm, a 3-jaw chuck
can be easily mounted with the optional quick-release chuck adaptor, allowing twist drills
to be used. In addition, other types of cutting tools such as countersinks, counterbores, and
reamers can be mounted. Since some cutting tools require a higher starting spindle height,
the SMD series has a variable slide height feature. This makes the machine very versatile and
useful for a wide range of metalworking applications and industries.
2 speed 1100 W magnetic drilling machine with quick-release arbor and adjustable slide height. Choose the SMD 352 for cutters up to Ø 35 x 50 mm and the SMD 502 for cutters up to Ø 50 x 50 mm. Both are capable of twist drilling up to 1/2" shank.
Power:
1100 W
Max. Capacity:
Annular Cutters: 50 mm x 50 mm ｜ Twist Drills: 13 mm shank x 140 mm
Type:
Annular Cutting ｜ Twist Drilling
SMD502
Introduction
Target group & Applications
SMD352 & SMD502 Introduction
The SMD two-speed series machines are a step up from the SMD351 series because they have
the additional feature of two-speed gearbox, which allows a wider range of cutter diameters
to be used while maintaining maximum torque. For drilling with annular cutters in steel, the
SMD352 is rated at 42 mm and the SMD502 is rated at 50 mm, with both using up to 50 mm
length cutters. The difference between these two models is in their gear ratios. Generally, the
gear ratio of the SMD502 is more optimized for using large diameter HSS cutters, while the
gearing of the SMD352 is optimized for using TCT cutters and slightly smaller HSS cutters. But
of course, either machine can mount either type of cutter.
The SMD series feature a quick-release spindle, allowing easy cutter changes. Although their
primary purpose is drilling with annular cutters, they are also well adapted to using other
cutting tools. As annular cutters cannot make holes smaller than about 12mm, a 3-jaw chuck
can be easily mounted with the optional quick-release chuck adaptor, allowing twist drills
to be used. In addition, other types of cutting tools such as countersinks, counterbores, and
reamers can be mounted. Since some cutting tools require a higher starting spindle height,
the SMD series has a variable slide height feature. This makes the machine very versatile and
useful for a wide range of metalworking applications and industries.
2 speed 1100 W magnetic drilling machine with quick-release arbor and adjustable slide height. Choose the SMD 352 for cutters up to Ø 35 x 50 mm and the SMD 502 for cutters up to Ø 50 x 50 mm. Both are capable of twist drilling up to 1/2" shank.
- 2 speed gear box for optimized torque and cutting speed for a wide range of cutting tools.
- The quick-adjustable variable height slide allows quick conversion between cutters and twist drills. Lower for cutters, raise for twist drills.
- The Quick-Release arbor makes it quick and tool-free to change cutters and accessories.
Power:
1100 W
Max. Capacity:
Annular Cutters: 50 mm x 50 mm ｜ Twist Drills: 13 mm shank x 140 mm
Type:
Annular Cutting ｜ Twist Drilling
