Aluminum Heat Sink - 5-2

Aluminum Heat Sink

Item No.: 5-2
Supplier Details
Country: Taiwan
City: New Taipei City 238
Address: No. 8, Ln. 292, Sanjun St., Shulin Dist.
TEL: +886-2-29013089
Fax: +886-2-26761337
Online Showroom: 53 Products

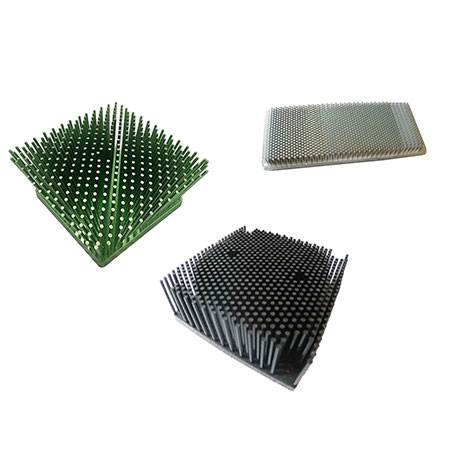

Aluminum Forged Heat Sink
  1. Material: Aluminum AL1070, AL5052, AL6061
  2. Size: Varieties, OEM Custom
  3. Manufacture Category: Copper Cold Forging, CNC Machining, Stamping, Anti-Oxidize
  4. Application: Computer Cooling products, 3C Products, Industrial Products, Lighting
  5. Origin, Place of shipment: Taiwan or China TBD
  6. Package: Standard package
  7. Shipment: sea freight, air freight, express delivery
  8. EU RoHS (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment) compliant products.

The Characteristics of Cold-Forged Heat Sinks has the following characteristics.
  1. Better thermal conductivity. Made from pure aluminum-AL1070/AL1050 by cold-forging tech. The thermal conductivity of AL1070 is 226W/m.k
  2. Better heat dissipation structure. The base plate of a cold-forged heat sink and its fins are integrally formed, without any gap between. Heat from the base plate can be conducted into the fins without any mediators.
  3. Larger Cooling Area. Fin thickness can be done with 0.8mm, distance between fins can be done with 1.2mm.
  4. Diversified Fins. Fins of various shapes such as a round pin, thin fin, square columns, hexagonal columns, etc.
  5. Large Size Heat Sinks. Dimension as large as 200mm x 250mm or even larger is achievable by cold-forging technology.
  6. Technology Characteristics.  High conductivity, high heat dispersion and high-precision, all these ensure high dimensional accuracy and stability. Thermal performance of cold-forged heat sinks is two times greater compared with the same type of die-casting parts.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Aluminum Heat Sink

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
