Metal Core PCB - Metal Core PCB

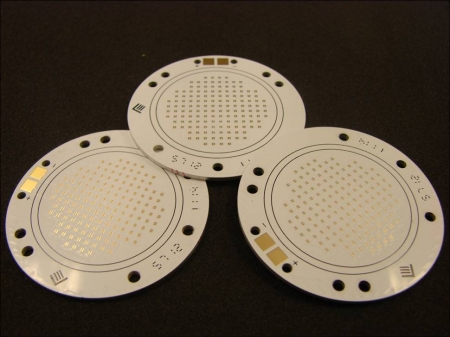

Metal Core PCB

Item No.: Metal Core PCB
Supplier Details
Country: Taiwan
City: Taoyuan
Address: 3F., No.534, Sec 1, Minsheng N. Rd., Guishan Township, Taoyuan County 333, Taiwan
TEL: +886-3-3116170
Fax: +886-3-3115879
Online Showroom: 30 Products
Layers:  1L & single side + two-layer plate
Max. board size:  470 X 570 mm
Board Thickness:  min. 0.6 mm +/-0.1 mm
                         max. 2.0 mm +/-10%
Copper Thickness: H ~ 2 oz
Dielectric Thickness: 80 μm ~152 μm
Dielectric Material: Heat Conductive Glue (2W & 3W)
Aluminum Type : 5052
Trace:
Minimum Line Width (Internal)      --  0.1mm
Minimum Line Spacing (Internal)  -- 0.1mm
Minimum Line Width (External)     -- 0.1mm
Minimum Line Spacing (External)  -- 0.1mm
Surface Finish –
Immersion Gold (Ni/Au) – 0.025 ~0.1 μm
Lead Free HASL  -- min. 2.5 μm
OSP (Entek CU106A) --  0.2~0.5 μm
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Metal Core PCB

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
