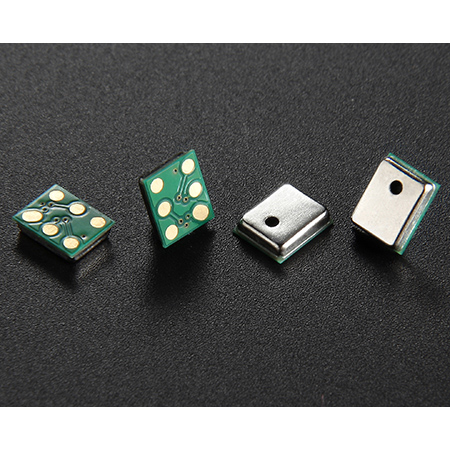

Digital MEMS Microphone - JL-M4737D

Digital MEMS Microphone

Item No.: JL-M4737D
Supplier Details
Country: Taiwan
State: Taiwan
City: Taichung
Address: 7F-11,No.77,Shin-Jen N.1st Rd.
TEL: +886-04-22585588
Fax: +886-04-22585665
Online Showroom: 81 Products
1.One of the world’s thinnest digital microphone. Moreoevr, it has high temperature durability till 260 degree.
2.The signal output is digital for better performance
3.Dimension: LxWxH  4.72mmx 3.755mm x 1.25 mm
4.Material: Silicone, semiconductor process.
5.Suitable for: Mobile/ Bluetooth/ Walkie-talkie/ Hearing Aids/ Tablet/ GPS/ Voice Recorder/ Digital Camera/ Monitors/ TV
6.Reasonable price with good quality!
7.Sensitivity: -26±4dB
8.Operation voltage :1.8V~2.8V
9.Current consumption: MAX 400uA
10.PSRR: -70dB
11.THD: 100dB SPL @1KHz ≦ 1%
             115dB SPL @1KHz ≦ 10%
12.Inquiries are welcome.
13.Stable quality, good price, long life.
14.Used for all kinds of top grade headset.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Digital MEMS Microphone

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
