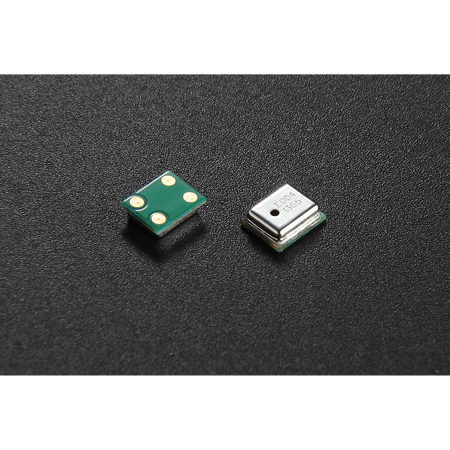

Mini Microphone - JL-M4737D

Mini Microphone

Item No.: JL-M4737D
Supplier Details
Country: Taiwan
State: Taiwan
City: Taichung
Address: 7F-11,No.77,Shin-Jen N.1st Rd.
TEL: +886-04-22585588
Fax: +886-04-22585665
Online Showroom: 81 Products
1.One of the world’s thinnest digital microphone. Moreoevr, it has high temperature durability till 260 degree.
2.The signal output is digital for better performance
3.Dimension: LxWxH  4.72mmx 3.755mm x 1.25 mm
4.Material: Silicone, semiconductor process.
5.Suitable for: Mobile/ Bluetooth/ Walkie-talkie/ Hearing Aids/ Tablet/ GPS/ Voice Recorder/ Digital Camera/ Monitors/ TV
6.Reasonable price with good quality!
7.Sensitivity: -26±4dB
8.Operation voltage :1.8V~2.8V
9.Current consumption: MAX 400uA
10.PSRR: -70dB
11.THD: 100dB SPL @1KHz ≦ 1%
            115dB SPL @1KHz ≦ 10%
12.Inquiries are welcome.
13.Microphone components.
14.Product according to your requirements.
15.High sensitivity microphone
16.We can provide you good quality products with good price.
17.Prompt delivery and excellent after-sales service.
18.Stable means versatility for use conditions.
19.Compatible with any computer based Digital Audio Workstation.
20.Using the audio processor chip for a perfect digital audio signal transmission.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Mini Microphone

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
