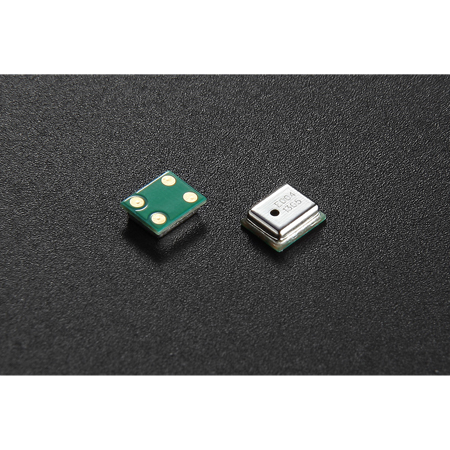

Mini Microphone
Item No.: | JL-M3729A |
Supplier Details
Country: Taiwan
State: Taiwan
City: Taichung
Address: 7F-11,No.77,Shin-Jen N.1st Rd.
TEL: +886-04-22585588
Fax: +886-04-22585665
![](/images/memberrole/t-1.jpg)
Online Showroom:
81 Products
1. typical size for MEMS microphone with high temperature durability about 260 degree.
2. Dimension: LxWxH 3.76mmx 2.95mm x 1.10 mm
3. Made by Silicone & chip with semiconductor process.
4. Suitable for following items: Mobile phone/ Earpiece/ Walkie-talkie/ Hearing Aids/ Tablet/ GPS/ Voice Recorder/ Digital Camera/ Monitors/ Notebook
5. good price & best quality!
6.Sensitivity: -42±3dB
7.Operation voltage :1.5V~3.6V
8.Current consumption: MAX 160uA
9.PSRR: -65dB
10.THD: 100dB SPL @1KHz ≦ 1%
115dB SPL @1KHz ≦ 10%
11. Inquires are welcome!
12. Compatible for various mobile phones
13. Customer's design welcome
14. Provide a stable sensitivity characteristics and consistent frequency response curve after reflow process.
15. With creative design by using the audio processor chip, has a perfect digital audio signal transmission.
16. Low-noise and thin electrostatic microphone with high sensitivity transmits clear signals and makes fine reproduction
2. Dimension: LxWxH 3.76mmx 2.95mm x 1.10 mm
3. Made by Silicone & chip with semiconductor process.
4. Suitable for following items: Mobile phone/ Earpiece/ Walkie-talkie/ Hearing Aids/ Tablet/ GPS/ Voice Recorder/ Digital Camera/ Monitors/ Notebook
5. good price & best quality!
6.Sensitivity: -42±3dB
7.Operation voltage :1.5V~3.6V
8.Current consumption: MAX 160uA
9.PSRR: -65dB
10.THD: 100dB SPL @1KHz ≦ 1%
115dB SPL @1KHz ≦ 10%
11. Inquires are welcome!
12. Compatible for various mobile phones
13. Customer's design welcome
14. Provide a stable sensitivity characteristics and consistent frequency response curve after reflow process.
15. With creative design by using the audio processor chip, has a perfect digital audio signal transmission.
16. Low-noise and thin electrostatic microphone with high sensitivity transmits clear signals and makes fine reproduction
