Medical Film Scanner
Item No.: | 8-2,Medi-6000 Plus |
Supplier Details
Country: Taiwan
City: Hsinchu City 30075
Address: No. 6, Industry East Road 3, Science Based Industrial Park
TEL: +886-3-5772155
Fax: +886-3-5772598
Online Showroom:
55 Products
Comprehensive Medical X-ray Film Digitizer
Fast scanning speed of just 12 seconds per chest film

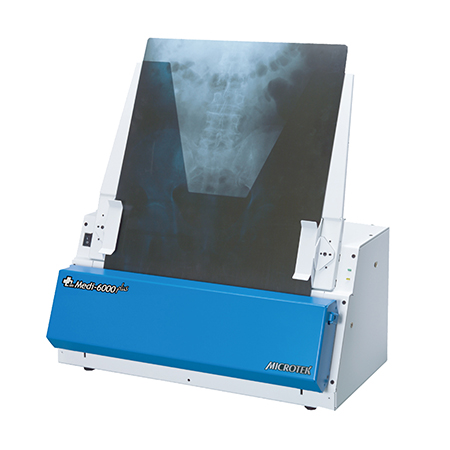

Microtek medical grade digitizer, the Medi-6000 Plus, can digitize X-ray films rapidly in 12 seconds per chest X-ray. With the advanced technology of the LED light source, the Medi-6000 Plus can reach full brightness and on/off operation immediately.
The Medi-6000 Plus can scan various sizes of X-ray films up to 14 x 35 inches, letting user easily archive many kinds of X-ray films. Equipped with high optical resolution, excellent Dmax, and 16-bit grayscale, the Medi-6000 Plus provides great image quality at an affordable price. It is easy to operate, clean, and maintain.
With the optional MiPAX-Xray of DICOM ready function, Medi-6000 Plus is perfect for fast-paced environment of the medical doctor's office, QC Station and PACS system.
Features
Specifications
Optical Resolution: 600 dpi (42 um spot size, 12 lp/mm)
Image Sensor Type: CCD
Light Source: LED
Color Modes: 8/12/16-bit grayscale
Scanning Area: 14” x 35” (355.6 mm x 889 mm)
Scanning Speed: 12 sec @300 dpi, 14” x 17”
Optical Density: 0.12D ~ 3.7D, 4.0 Dmax
Dimensions (LxWxH): 590 x 483 x 307 mm (w/ tray)
Weight: 19.18 lbs. (8.7 kg)
OS Support: Windows
Fast scanning speed of just 12 seconds per chest film
Microtek medical grade digitizer, the Medi-6000 Plus, can digitize X-ray films rapidly in 12 seconds per chest X-ray. With the advanced technology of the LED light source, the Medi-6000 Plus can reach full brightness and on/off operation immediately.
The Medi-6000 Plus can scan various sizes of X-ray films up to 14 x 35 inches, letting user easily archive many kinds of X-ray films. Equipped with high optical resolution, excellent Dmax, and 16-bit grayscale, the Medi-6000 Plus provides great image quality at an affordable price. It is easy to operate, clean, and maintain.
With the optional MiPAX-Xray of DICOM ready function, Medi-6000 Plus is perfect for fast-paced environment of the medical doctor's office, QC Station and PACS system.
Features
- FDA, CE MDD certified
- 12 seconds per chest X-ray film scanning
- No warm up time with LED light source
- 4.0 Dmax, 600 dpi optical resolution (42 µm spot size, 12 lp/mm)
- Covers various sizes of X-ray films from 2.5" x 2.5" to 14" x 35"
- Auto-crop & Auto-deskew
- Supports DICOM 3.0 and telemedicine
- Optional versatile professional MiPAX-Xray software makes e-medical records management easy
- Optional automatic film feeder (AFF) with 15-sheet capacity
Specifications
Optical Resolution: 600 dpi (42 um spot size, 12 lp/mm)
Image Sensor Type: CCD
Light Source: LED
Color Modes: 8/12/16-bit grayscale
Scanning Area: 14” x 35” (355.6 mm x 889 mm)
Scanning Speed: 12 sec @300 dpi, 14” x 17”
Optical Density: 0.12D ~ 3.7D, 4.0 Dmax
Dimensions (LxWxH): 590 x 483 x 307 mm (w/ tray)
Weight: 19.18 lbs. (8.7 kg)
OS Support: Windows
