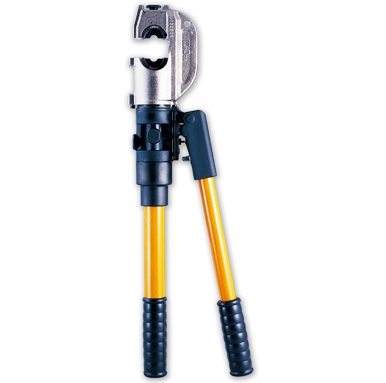

Manual crimping machine
| Item No.: | UB-412 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: No. 55, Singjheng St.,Xindian District, New Taipei City 23147, Taiwan（R.O.C.）
TEL: +886-2-29109790
Fax: +886-2-29151202
Online Showroom:
5 Products
Introduction:
• Maximum Crimping capacity : 400s.q.mm copper terminals
• You can use Alcoa, Burndy, T & B, Klauke, Cembre and Blackburn and all 12 tons of crimping dies
• Two-stage inlet
Job Capacity:
• Maximum Crimping capacity : 400s.q.mm copper terminals
• You can use Alcoa, Burndy, T & B, Klauke, Cembre and Blackburn and all 12 tons of crimping dies
• Two-stage inlet
Product Specifications:
• Length : 590 mm
• Weight : 6.9 kgs
• Maximum pressure : 700 bar
• Maximum output : 12.7 tons / 125 KN
• Required fuel : 145 cc
• C -head opening : 32 mm
Features:
• fiberglass handle light weight , durable
• With overload protection feature release valve
• In accordance with crimp output size , high and low operating pressure switch automatically
• head can rotate 180 degrees for easy operation angle
• External adjustable pressure valve
• Two-stage plunger into the oil system , can significantly reduce the number of handle pressure
Packaging:
• KuDos portable plastic box
• Pressure interface module sold separately (CU 16 / 25 / 35 / 50 / 70 / 95 / 120 / 185 / 240 / 300 / 400)
• Maximum Crimping capacity : 400s.q.mm copper terminals
• You can use Alcoa, Burndy, T & B, Klauke, Cembre and Blackburn and all 12 tons of crimping dies
• Two-stage inlet
Job Capacity:
• Maximum Crimping capacity : 400s.q.mm copper terminals
• You can use Alcoa, Burndy, T & B, Klauke, Cembre and Blackburn and all 12 tons of crimping dies
• Two-stage inlet
Product Specifications:
• Length : 590 mm
• Weight : 6.9 kgs
• Maximum pressure : 700 bar
• Maximum output : 12.7 tons / 125 KN
• Required fuel : 145 cc
• C -head opening : 32 mm
Features:
• fiberglass handle light weight , durable
• With overload protection feature release valve
• In accordance with crimp output size , high and low operating pressure switch automatically
• head can rotate 180 degrees for easy operation angle
• External adjustable pressure valve
• Two-stage plunger into the oil system , can significantly reduce the number of handle pressure
Packaging:
• KuDos portable plastic box
• Pressure interface module sold separately (CU 16 / 25 / 35 / 50 / 70 / 95 / 120 / 185 / 240 / 300 / 400)
