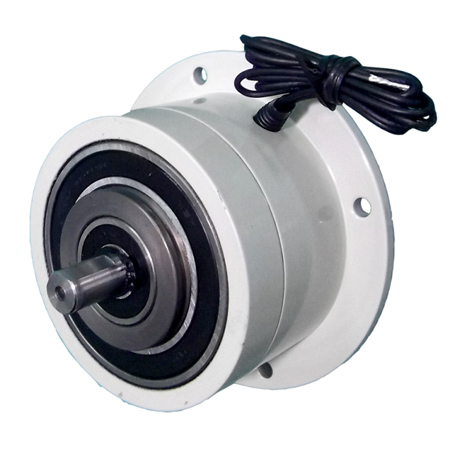

Industrial Electric Clutch
Item No.: | POC |

(Standard voltage DC24V)
Size |
Static torque Nm(kgfcm) |
The volume of input (75.C) |
Idle torque (kgfcm) |
Slide power (W) |
The max. rotative time (r/min) |
Weight (kg) |
||
Electric current (A) |
Electric resistance (Ω) |
Number of hour set (S) |
||||||
POC-0.05N |
0.5(5) |
0.35 |
68 |
0.02 |
0.25 |
30 |
1800 |
0.4 |
POC-0.1N |
1(10) |
0.47 |
51 |
0.03 |
0.5 |
40 |
1800 |
0.6 |
POC-0.2N |
2(20) |
0.55 |
43. |
0.055 |
1.0 |
50 |
1800 |
1 |
POC-0.5N |
5(50) |
0.8 |
30 |
0.055 |
2.5 |
60 |
1800 |
1.4 |
POC-1.0N |
10(100) |
1.0 |
24 |
0.09 |
5 |
100 |
1800 |
4.1 |
Remark:
1. POC model of electromagnetic clutch has wider range and great precision of torque control. The transmit of torque is proportioned to the exciting current so that can attain the high precision of control.
2. POC model of electromagnetic clutch is made by heat tolerance and wear- resistant of super alloy magnetic powder materials, the usage time is longer.
3. The magnetism of magnetic power is high quality so that the slide torque is stable. It will not affect by the rotative times and it can maintain the torque.
4. POC model of electromagnetic clutch has great heat- dissipation effect and high tolerance of magnetic powder. The clutch power is high and it can work smoothly without shaking.
