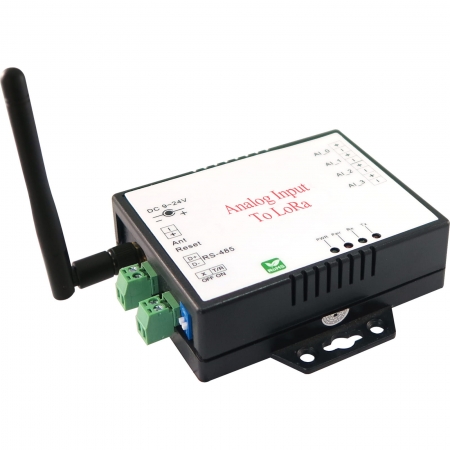

LoRaWAN Node, Analog Input, Modbus RTU
| Item No.: | LW200A4 / LW200A8 |
Supplier Details
Country: Taiwan
City: Kaohsiung
Address: 1F, 149 Xingzhong 1st Road
TEL: +886-7-2223185
Fax: +886-7-2230532
Online Showroom:
30 Products
www.atac.com.tw
https://www.atac.com.tw/7378/lorawan-node-analog-input-modbus-rtu-lw200a/
sales@atac.com.tw
Specifications:
Auto polling Analog Input Sensor Data to LoRaWAN
CPU : Xtensa® 32-bit LX6 microprocessors 160M Hz
RAM : 400K Bytes SRAM
ROM : 380K Bytes Flash ROM
Support : LoRaWAN 1.0.2
LoRa
Semtech SX1262
Frequency : ISM band 863 ~ 928MHz
Receiver Sensitivity : -139 dBm
Transmission Output Power : 22 dBm
Deep Sleep Current : 10uA
TX current < 140 mA@20 dbm , RX current < 10 mA
Antenna : SMA Type , 2 dBi , changeable
Distance : Up to 1500 Meters in free open space
Data Rate : 0.244 ~ 18.2K bps (LoRa)
Application mode : Star
Analog Input
No. of Port : 4 mixed channels selective from 4~20 mA or 0~10 V
TI chipset 16 bits resolution
Sample rate : 3 times / second ( 8 channels )
Setup Tool : Windows Utility
Power : DC 9 ~ 24V / 150ma @ 9V , 60ma @ 24V
Led Lamp : SYS (green) , Rx (red) , Tx (green), Paired (red)
Operating Temperature : -10℃〜70℃
Storage Temperature : -20℃〜80℃
Dimensions : 100 * 90 * 25 mm ( W * D * H )
Weight : 150 gm ( not include power )
