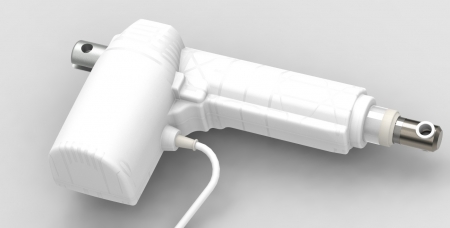

Linear Actuator LA32
Item No.: | LA32 |
Supplier Details
Country: Taiwan
State: Taiwan
City: Taichung City
Address: No.37, Jingke 5th Rd., Wunshan Village., Nantun Dist., Taichung City 408, Taiwan (R.O.C.)
TEL: +886-4-23596262
Fax: +886-4-23595998
Online Showroom:
7 Products
Features:
- 24V DC permanent magnet motor
- Thrust 1500N~6000N; Speed 3.0~16.7mm/s
- Built-in limited switches (not adjustable)
- High-strength plastic housing protects motor and gear
- Scratch-resistant and wear-resistant powder painted outer tube
- Strong wear and corrosion resistant stainless steel inner tube
- Elegant and compact design with small installation dimensions
- Steel piston rod eye
- Zinc alloy back fixture
- Duty cycle: Max. 10% or 2 min./ 18 min. in continuous use
- Ambient temperature: +5ºC to +40ºC
- Protection class: IP54
- Color: White
Options:
- LA32 can be fitted with a brake for increasing self-lock effect
- Safety nut
- Protection class: IP66 (not for wash tunnels)
- Reed-Switch
- Quick-Release
- Back stretch sleeve fixture (For only Quick-Release function)
- 0.2/ 0.4m coiled cable with DIN or Jack plug
- Back fixture position 0º or 90º
- Steel groove piston rod eye
- Fast motor
- Color: Gray-White (Min. order: 1,000 pcs)
- Can install Hall Sensor function (Contact R & D department of LINKAN A/C first)
- 24V DC permanent magnet motor
- Thrust 1500N~6000N; Speed 3.0~16.7mm/s
- Built-in limited switches (not adjustable)
- High-strength plastic housing protects motor and gear
- Scratch-resistant and wear-resistant powder painted outer tube
- Strong wear and corrosion resistant stainless steel inner tube
- Elegant and compact design with small installation dimensions
- Steel piston rod eye
- Zinc alloy back fixture
- Duty cycle: Max. 10% or 2 min./ 18 min. in continuous use
- Ambient temperature: +5ºC to +40ºC
- Protection class: IP54
- Color: White
Options:
- LA32 can be fitted with a brake for increasing self-lock effect
- Safety nut
- Protection class: IP66 (not for wash tunnels)
- Reed-Switch
- Quick-Release
- Back stretch sleeve fixture (For only Quick-Release function)
- 0.2/ 0.4m coiled cable with DIN or Jack plug
- Back fixture position 0º or 90º
- Steel groove piston rod eye
- Fast motor
- Color: Gray-White (Min. order: 1,000 pcs)
- Can install Hall Sensor function (Contact R & D department of LINKAN A/C first)
