Linear Actuator LA27 - LA27

Linear Actuator LA27

Item No.: LA27
Supplier Details
Country: Taiwan
State: Taiwan
City: Taichung City
Address: No.37, Jingke 5th Rd., Wunshan Village., Nantun Dist., Taichung City 408, Taiwan (R.O.C.)
TEL: +886-4-23596262
Fax: +886-4-23595998
Online Showroom: 7 Products

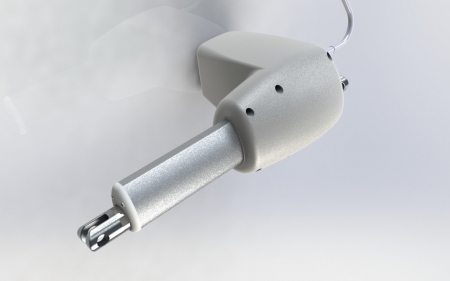

LA27 is an extreme powerful actuator, its intensified inner structure with new mechanism makes the thrust up to 10000N. It is suitable for the equipment of medical and rehabilitation which require powerful thrust actuator.

LA27 is an extreme powerful actuator, its intensified inner structure with new mechanism makes the thrust up to 10000N. It is suitable for the equipment of medical and rehabilitation which require powerful thrust actuator.

Features:
- 24V DC permanent magnet motor
- Thrust: 8000~10000N
- Limited switches built-in
- Strong wear and corrosion resistant stainless steel inner tube
- Steel piston rod eye
- Zinc alloy back fixture
- Duty cycle: Max. 10% or 2 min./ 18 min. in continuous use
- Ambient temperature: +5C to +40CJ
- Protection class: IP54
- Color: Grey-white
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Linear Actuator LA27

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
