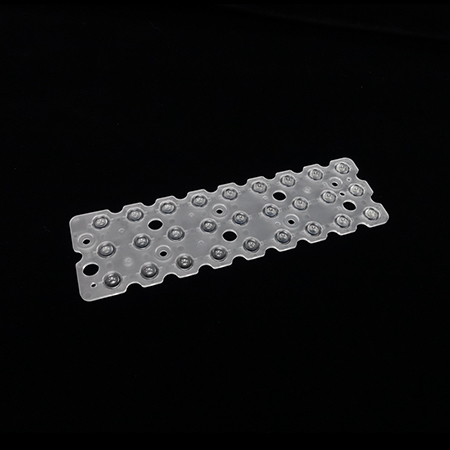

Dimensions: 178mm x 53.7mm x 5.58mm (PIN2.5mm)
Material: PC
Beam type: Lambertian
Typical beam angle: 63°

LED:
Cree: XP-E HE White, XP-G, XB-D, XQ-E, XP-L HI, XB-H, XQ-E HI, XHP35-HI
Lumileds: Luxeon Rebel ES, Luxeon Z, Luxeon Z ES, Luxeon 3030 2D, Luxeon A, Luxeon T, Luxeon R, Luxeon Rebel, Luxeon Rebel Plus, Luxeon 3535L
Osram: OSLON SSL150, OSLON Square, DURIS S5, DURIS P5, DURIS P5 (RED)
Nichia: 757, 219A, 119A
Everlight: Shuen, Shwo
Toshiba: TL1L4

Application:
Tunnel lighting
Indoor and outdoor commercial lighting
Residential architectural lighting
Signal and symbol luminary for orientation

Family products:
AC123-L803T, AC123-L701T, AC123-L702F, AC123-L709T, AC123-L710T, AC123-L901T, AC123-L902T, AC123-L719T, AC123-L726T, AC123-L609T, AC123-L806T

Product category: Module, 27 IN 1

Holder Strengths:
Easy assembly
Cheap tooling cost
without glue
Tape solution
Mix optical
