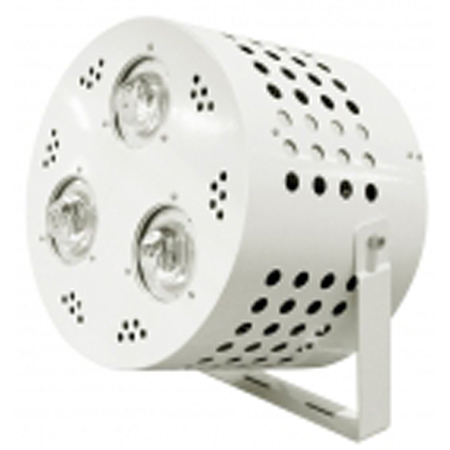

LED Fishing Light
| Item No.: | SU-X1-240W |
How do LED Fishing Lights work?
It’s pretty simple. Small organisms make up the menu for large organisms, which in turn feed still large organism. The submerged lights attract the plankton that smaller fish like shad and minnows, or shrimp and menhaden at the coast love to chow on, and the presence of the bait fish attracts the predators that like to feed on them… your game fish.
Outline Drawing:
Specification
Specifications: 180W LED Spotlight
|
Item |
Specification |
Details |
|
Physical |
Dimension |
∅380 x 277.5(H) mm |
|
Weight |
14kg(Including power) | |
|
Housing |
Aluminum alloy | |
|
Optical |
Beam Angle |
56°,95°,98°x132° |
|
LED chip Lumens |
18900±0.5% lm typ. for 5300K | |
|
LED light Lumens |
15300±0.5% lm typ. for 5300K | |
|
CRI |
70 typ. for 5300K | |
|
LEDs |
Chip on Board | |
|
Electrical |
Power Input |
100~240Vac |
|
Power Consumption |
180±10% watt | |
|
LED Current |
Constant current mode | |
|
Temperature Range |
Storage Temperature |
-30℃~80℃ |
|
Operation Temperature |
-30℃~50℃ | |
|
Other |
Ingress Protection Rating |
IP65 |
Beam Angle= 56°
|
Modules |
Center Beam Lux |
Beam Width | |
|
SU-X1-180-5-056 | |||
|
Color |
Cool White | ||
|
1m |
16650±5% lx |
|
1.1m |
|
3m |
1850±5% lx |
3.2m | |
|
5m |
666±5% lx |
5.3m | |
|
10m |
164±5% lx |
10.6m | |
Maximum light intensity 16850±0.5% cd
Specification
Photometric: 180W LED Spotlight
Beam Angle= 95°
|
Modules |
Center Beam Lux |
Beam Width | |
|
SU-X1-180-5-056 | |||
|
Color |
Cool White | ||
|
1m |
8150±5% lx |
|
2.2m |
|
3m |
906±5% lx |
6.5m | |
|
5m |
326±5% lx |
10.9m | |
|
10m |
81±5% lx |
21.8m | |
Maximum light intensity 8266±0.5% cd
Photometric: 180W LED Spotlight
Beam Angle= 132° ( C0 - C180)
Beam Angle= 98° ( C90 - C270)
|
Modules |
Center Beam Lux |
|
SU-X1-180-5-132 | |
|
Color |
Cool White |
|
1m |
3721±5% lx |
|
3m |
412±5% lx |
|
5m |
149±5% lx |
|
10m |
38±5% lx |
