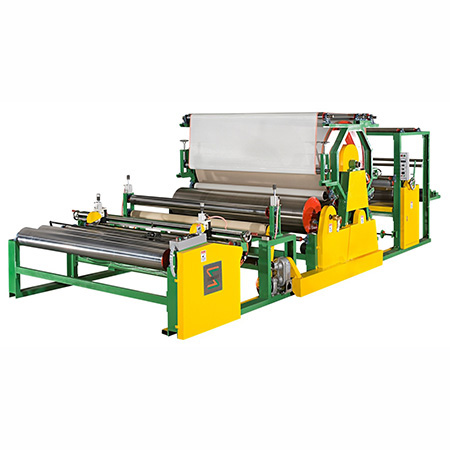

Foam Lamination Machine
Item No.: | SA-6AC |
Supplier Details
Country: Taiwan
City: Taipei City
Address: 10F., No.200, Sec. 2, Jinshan S. Rd., Da’an Dist.
TEL: +886-2-23956686
Fax: +886-2-23217266
Online Showroom:
48 Products
Laminating machine
- The laminating machine is for laminating foam sheets with various type of fabrics, using adhesive material such as natural latex or water base synthetic resin.
- All foam feeding, heating, winding up rollers and heating units are driven by a horizontal shaft to synchronize foam feeding and laminating speed, and to get the best tension for the foam sheets and textile.
- The heating system is by electrical heating elements and the heating temperature can be adjusted and controlled automatically.
- The thickness of the adhesive paste can be adjusted as well.
- Available laminating material: foam sheet with various fabrics & textile, eva sheet with textile, PU, PVC leather...etc.
- Working thickness: 2 - 20 mm.
- Optional increase of the working width.
- Optional extra heating roller to increase the drying speed.
- Option of adding two side trimmer.
- Option of adding cooling roller.
