Smart Label Reader/Writer

Introduction:

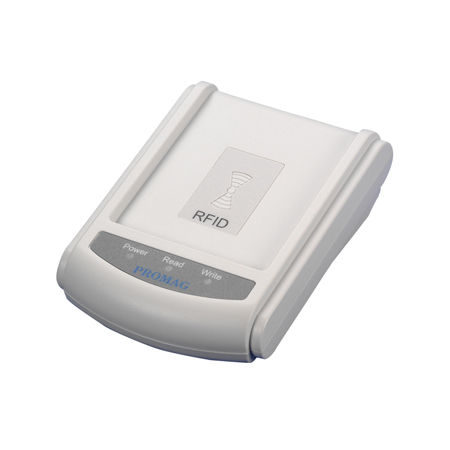

PCR360 is a simple- to- use device applying ISO15693 standard at 13.56Mhz RFID technology to read the smart labels for retailing goods management in the aspect of time saving management. The device is designed in a desktop style, which is compact and easy to apply in any space limit environment.
There is no hassle operation installation procedure for PCR360.  Simply set it on a flat space, once an ISO15693 compliant smart label is nearby, PCR360 will sensor the label and read the data directly.

Features:
·Read 13.56Mhz frequency smart label
·Designed with USB interface
·Read ISO compliant smart labels
·Verify ID code for the system operator identification
·Cradle design to accept RFID card for the application
as below:
≯System is workable when the registered card is sitting on the cradle
≯System is not workable when the registered card is removed from the cradle.

Applications:
·Logistic system
·Express parcel management
·Production Authentication
·Access control/Time recorder
·Ticketing
·Smart label printer and encoder
·System login/logoff

Specifications:

Specification / Model	PCR360
Interface	USB
Reading Frequency	13.56Mhz
Baud rate	19200 bps
Card types	Smart label ISO/15693, ISO18000-3
Reading distance	80 mm / 13.56MHz at ISO Card
Power requirement	DC 5V, Standby 140mA
Safety Certificate	CE / FCC
Dimensions	L120 x W86 x H42 mm
Environment	Operation Temperature: -0 ~ 50 Deg. C Storage Temperature: -10 ~ 60 Deg C Humidity: 10 ~ 90%

Ordering information:
PCR360U-00   - USB interface

※ Specification is subject to change without notice.
