Filter Housing
Item No.: | KF |
Supplier Details
Country: Taiwan
City: Pingtung County 900
Address: No.2,S. 1st Rd., Pingtung City
TEL: +886-8-7511181
Fax: +886-8-7513525

Online Showroom:
64 Products

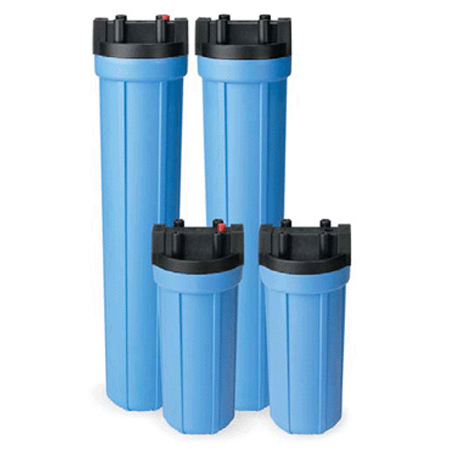

KF Filter Housing
Domestic Applications
filtration and treatment of drinking water, protection of taps, boilers, washing machines, and other installations.
Industrial Applications
pre-filtration, micro-filtration; protection of pumps,
heating systems, softeners, demineralising and chlorine-removing appliances, RO units.
Specifications
KF filter housing with engineering design for 9-3/4 in. filter cartridges; Made from PP + 20% talc filled and AS, NSF listed and FDA grade materials; Clear housing, available with 3/8",1/2", 3/4" FNPT white brass insert cap. With relief pressure button. With NSF listed.
Working Conditions
Max. working pressure...................8.8 BAR
Max. working temp........................50℃
Domestic Applications
filtration and treatment of drinking water, protection of taps, boilers, washing machines, and other installations.
Industrial Applications
pre-filtration, micro-filtration; protection of pumps,
heating systems, softeners, demineralising and chlorine-removing appliances, RO units.
Specifications
KF filter housing with engineering design for 9-3/4 in. filter cartridges; Made from PP + 20% talc filled and AS, NSF listed and FDA grade materials; Clear housing, available with 3/8",1/2", 3/4" FNPT white brass insert cap. With relief pressure button. With NSF listed.
Working Conditions
Max. working pressure...................8.8 BAR
Max. working temp........................50℃
Model | In/Out Threads | Pressure Relief Button | Bowl Color | Head Color |
KFC38-NP | 3/8" NPT | YES | Transparent | Black |
KFCL38-NP | 3/8" NPT | YES | Blue | Black |
KFC12-NP | 1/2" NPT | YES | Black | Black |
KFCBL12-NP | 1/2" NPT | YES | Blue | Black |
KFC34-NP | 3/4" NPT | YES | Transparent | Black |
