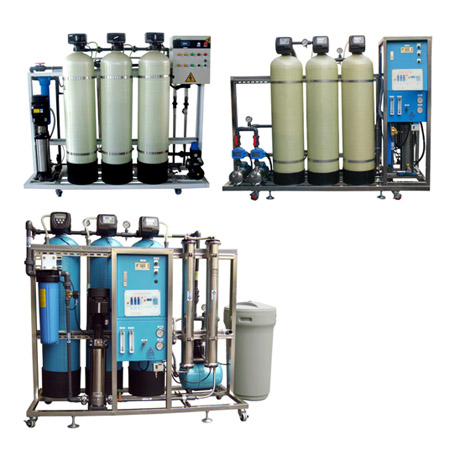

K series Reverse Osmosis System

ROTEK compact commercial reverse osmosis system is a durable piece of equipment which, with proper care and maintenance will last for many years. PK series systems are part of a family of reverse osmosis units designed with pre-filtration systems on a skid frame, for operation with fresh and brackish feedwaters having TDS values below 2,000ppm. Models are available with permeate outputs of between 250 and 1000 litres/hr as shown in the specifications tables.

Product Features

304 grade stainless steel perimeter frame with rubber isolation feet.
Integrated microprocessor based controller with display for TDS and system status.
Automatic membrane flush (with feed water) at start-up and every 12 hours continuous operation.
Flow meters for permeate (treated product) and reject (waste) streams.
Liquid filled pressure gauges for feed water pressure and membrane discharge pressure.
Feed water inlet cartridge filter.
Feed water inlet solenoid valve.
Low feed water pressure sensor with automatic shutdown.
High pressure UPVC SCH80 membrane pressure vessels.
All pre-treatment systems are amounted in one skid frame.
Compact Space Saving Design.

Model		PK 1500	PK 3000	PK 4500	PK 6000
Capacity	GPD / LPD	1500 / 250	3000 / 500	4500 / 750	6000 / 1000
Working Pressure	PSI / BAR	150 - 200 / 10 - 14
Raw Water Feed Pump		Injection type S.S pump + pressure tank
Sand Filter	Control Valve	Automatic Timer Control Valve
	Size & Capacity	10"x54" (50L)	10"x54" (50L)	13"x54" (70L)	13"x54" (70L)
Carbon Filter	Control Valve	Automatic Timer Control Valve
	Size & Capacity	10"x54" (50L)	10"x54" (50L)	13"x54" (70L)	13"x54" (70L)
Softener	Control Valve	Automatic Volumetric Control Valve
	Size & Capacity	10"x54" (50L)	10"x54" (50L)	13"x54" (70L)	13"x54" (70L)
Pre-Filter		Big Blue Filter Housing + PP 5um Cartridge
High Pressure Pump		Rotary Van Pump + Motor (1HP)	Multi-staged Centrifugal Pump (3HP)
Membrane Housing		Stainless Steel 304 with PE end-caps
RO Membrane		4040 x 1	4040 x 2	4040 x 3	4040 x 4
Frame	Parts	Stainless steel main frame, rollers, brackets
	Size	2170mm x 690mm x 1560mm ( L x W x H )

Feed Water Specifications (minimum)
Hardness	< 1 ppm	Hydrogen Sulphide	0 ppm	Free Chlorine	0 ppm
Manganese	< 0.05 ppm	T.D.S.	< 2000 ppm	Organics	< 1 ppm
Turbidity (SDI)	< 5	Temperature	+ 5 to + 40°C	pH	3 - 11
Silica	< 1.0 ppm	Iron	< 0.01 ppm	Pressure	> 300 kPa
R.O. Operating Parameters
Min. Pressure	BAR (35 PSI)	Max. Pressure	BAR (300 PSI)	Max. Hardness	1 ppm
Min. Salt Rejection	96%	Max. Salt Rejection	99%	Max. TDS	2000 ppm

Feed water quality, pressures and flow rates have a significant impact on the performance of any reverse osmosis system. To ensure reliable and consistent long-term performance, it is important to supply feed water having the minimum specifications detailed below. If your feed water supply is marginal, you should consider using a feed water break tank and booster pump to supply the system.

The ROTEK group was established by a group of water treatment professionals in 1990. We have consolidated multiple partnerships worldwide and grown our customer base to cover more than 30 countries for our consulting, planning, water resource management and comprehensive support services. Customer satisfaction is at the core of our group philosophy. ROTEK manufactures commercial and industrial reverse osmosis systems that range in size from 50 gallons per day to over a million gallons. Complete packaged systems are available which include all pre-treatment stages with ultra-filtration, carbon filters, water softeners and iron removal filters, as well as post-treatment using UV, electro-deionization and corona discharge ozone systems. Our years of hands-on experience enable us to provide innovative and cost effective purified water solutions. We pride ourselves on providing clients with the lowest lifecycle costs, the highest quality and the most responsive service in the water treatment industry. We have products, technologies, experience and knowledge to support your needs. Our attention to detail has made the ROTEK group a leading manufacturer and distributor in this industry. OUR ADVANTAGES 1. A Single Source Supplier You Can Trust Our broad range of water and wastewater treatment systems gives us the ability to offer you one or multiple technologies that can be integrated into a total water solution meeting specific project requirements. From small components to large systems, we are capable of providing competitive pricing with a quality product that best suits your application. 2. Unparalleled Global Sourcing As a worldwide designer and supplier of water and wastewater treatment systems and services, we have developed a global sourcing network to deliver maximum value through the elimination of non-value-added expense. 3. Flexible OEM/ODM Service Here at ROTEK, we believe that standard products are not always suitable to meet your demands. In order to better service those needs, ROTEK has an extensive OEM/ODM service where you can customize a design, and see it through to production with the help of our highly specialized OEM/ODM team.
